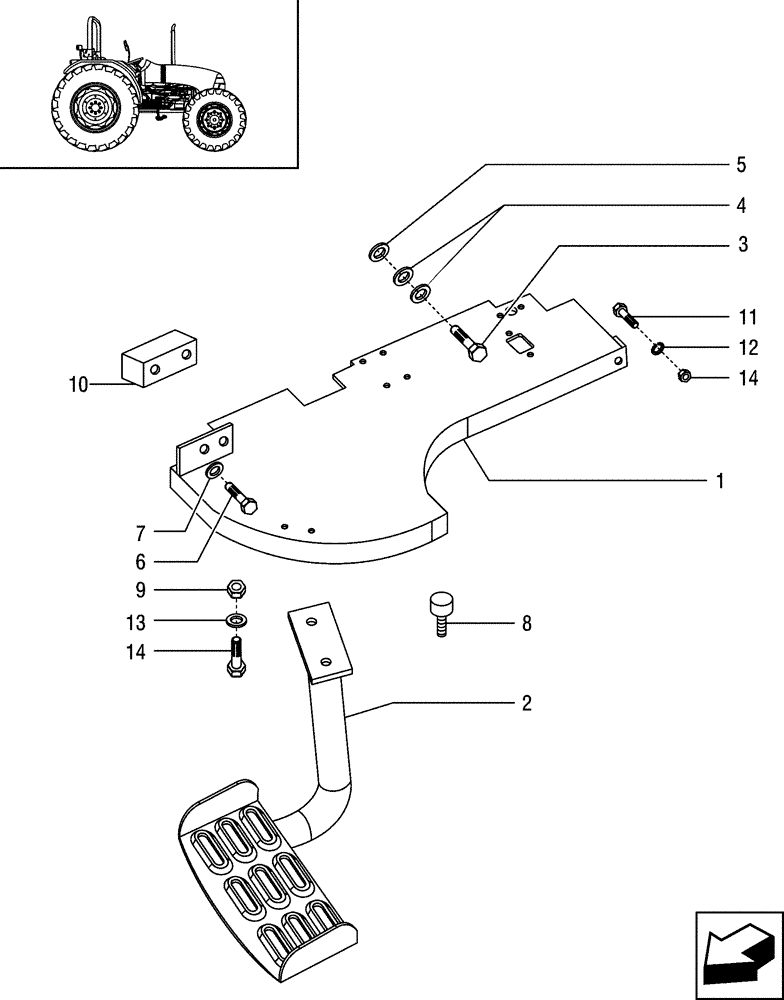

Запчасти Case IH JX85 (1.87.0/03[02]) - MUDGUARDS AND FOOTBOARDS - FOR STRADDLE VERSION (08) - SHEET METAL

1

5096820

FOOT BOARD

RH

1шт.

1

5096821

FOOT BOARD

LH

1шт.

2

5098657

STEP

2шт.

3

5119129

SCREW

4шт.

4

5119125

PAD

8шт.

5

5119126

WASHER

4шт.

6

15981421

SCREW,Hex, M16 x 1.5 x 85mm, Cl 8.8

M16 x 1.5 x 85

4шт.

7

10572179

LOCK WASHER,M16

4шт.

8

5115768

STOP

3шт.

9

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

16шт.

10

5092834

SPACER

2шт.

11

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

12шт.

12

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

18шт.

13

10569374

LOCK WASHER,M8

16шт.

14

12164711

NUT,M10 x 1.25, Cl 8

18шт.
