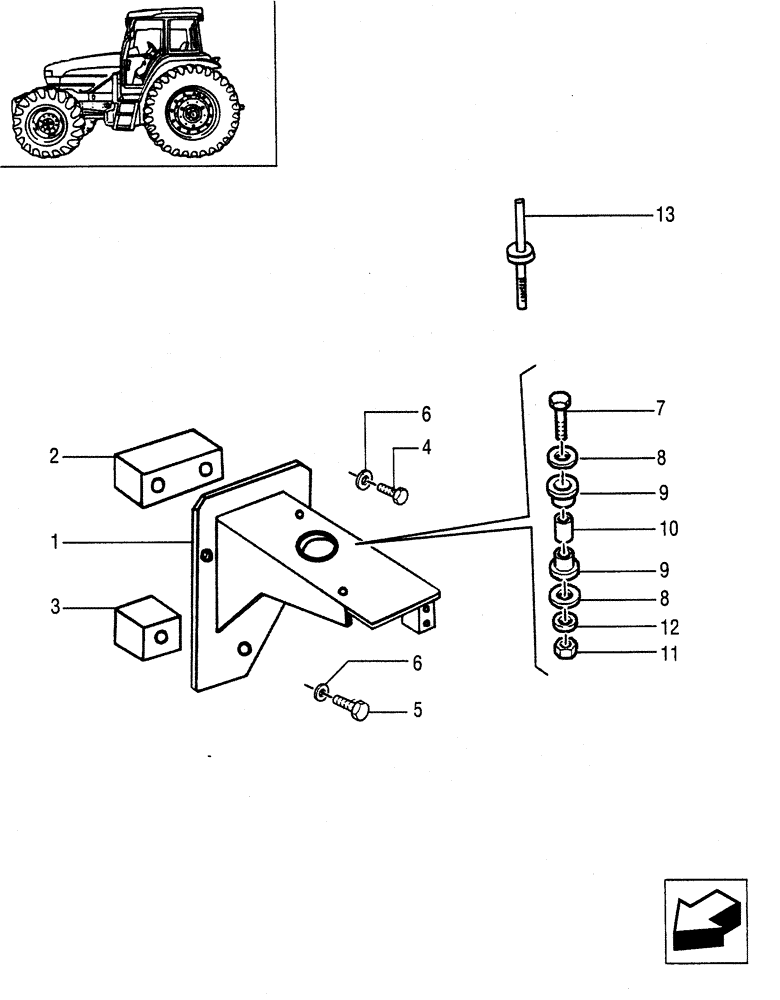

Запчасти Case IH JX85 (1.87.0[05]) - PLATFORM - SUPPORT (08) - SHEET METAL

1

5089519

STEP

RH, L/Cab

1шт.

1

5089520

STEP

LH, L/Cab

1шт.

2

5092834

SPACER

2шт.

3

5092835

SPACER

2шт.

4

15981421

SCREW,Hex, M16 x 1.5 x 85mm, Cl 8.8

M16 x 1.5 x 85

4шт.

5

11369621

SCREW,Hex, M16 x 1.5 x 110mm, Cl 8.8

2шт.

6

10572179

LOCK WASHER,M16

6шт.

7

15541921

BOLT,Hex, M12 x 1.25 x 130mm, Cl 8.8

2шт.

8

5167723

WASHER,12.5mm ID x 75mm OD x 4mm Thk

6шт.

9

5187531

RUBBER WASHER,16.5mm ID x 60mm OD x 20mm Thk

8шт.

10

5167724

SPACER,12.25mm ID x 17mm OD x 38mm L

4шт.

11

16105021

LOCK NUT,M12 x 1.25, Cl 10

4шт.

12

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

4шт.

13

5089523

STUD

2шт.
