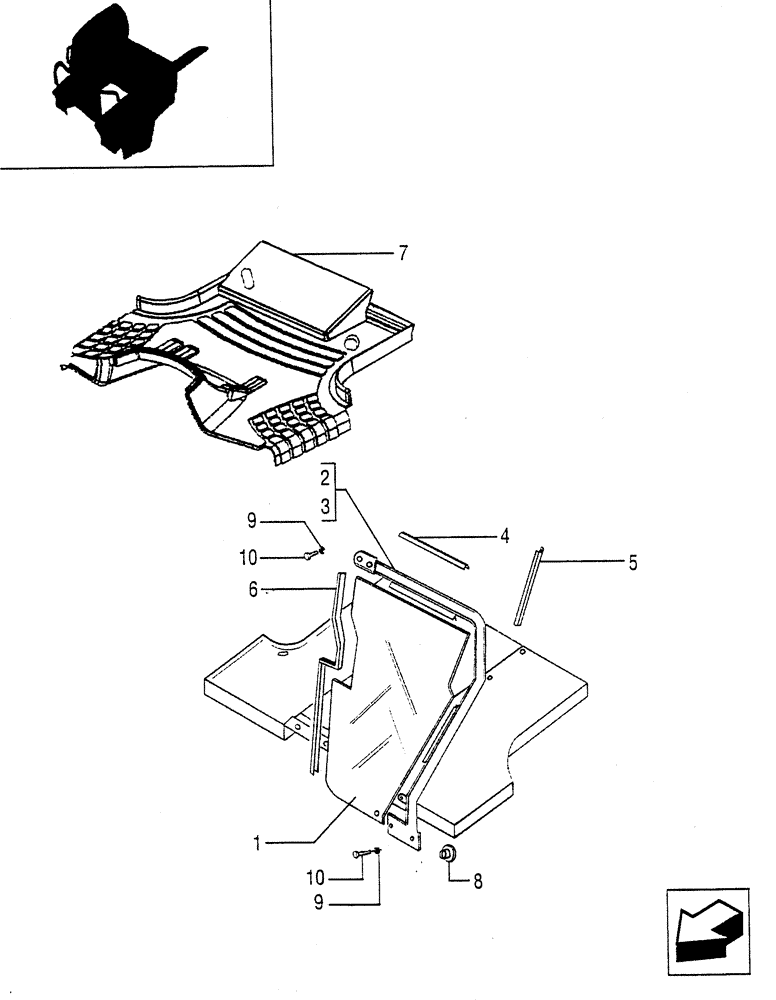

Запчасти Case IH JX85 (1.87.0[04]) - PLATFORM - L/CAB (08) - SHEET METAL

1

5093343

CAB GLASS ASSY

2шт.

2

87725193

SUPPORT

LH

1шт.

3

87725192

SUPPORT

RH

1шт.

4

5092181

SEAL, GLASS,240mm L

2шт.

5

5092182

SEAL, GLASS,150mm L

2шт.

6

5093345

SEAL, GLASS

2шт.

7

5090456

MAT

1шт.

8

5092183

GROMMET

2шт.

9

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

8шт.

10

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

8шт.
