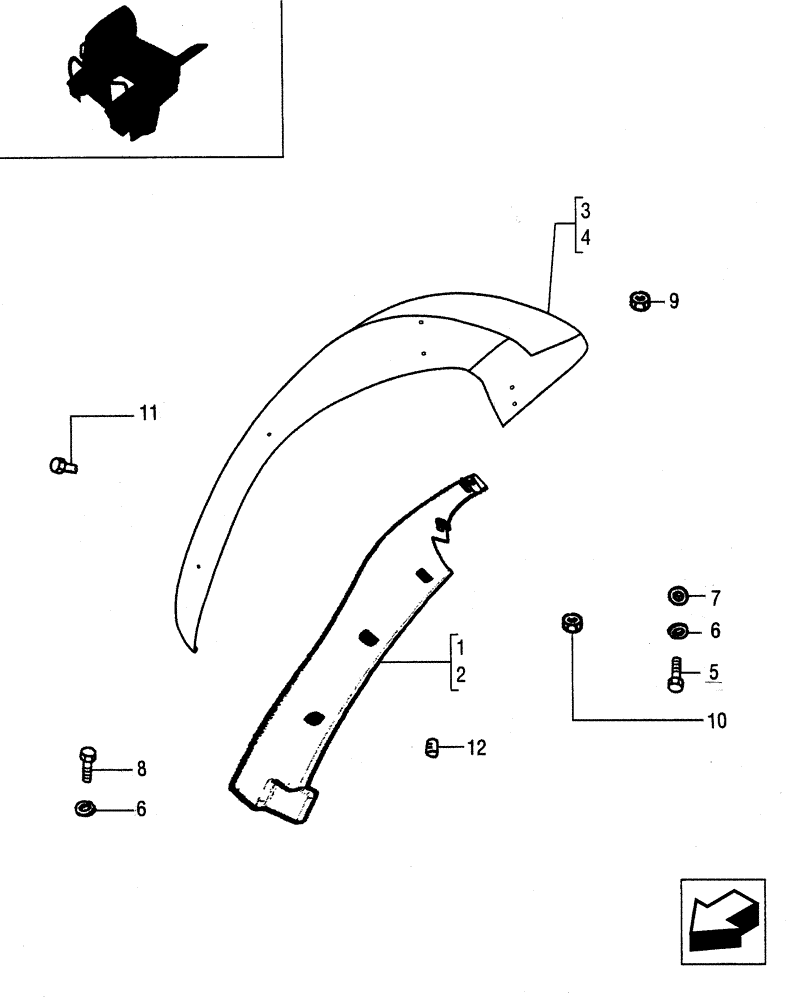

Запчасти Case IH JX85 (1.87.0[02]) - MUDGUARDS AND FOOTBOARDS - W/CAB (08) - SHEET METAL

1

5089624

FENDER EXTENSION

RH, JX55-JX65-JX75-JX85

1шт.

With cab

1шт.

1

5093469

FENDER EXTENSION

RH,JX95

1шт.

With cab

1шт.

2

5089625

FENDER EXTENSION

LH, JX55-JX65-JX75-JX85

1шт.

With cab

1шт.

2

5093470

FENDER EXTENSION

LH,JX95

1шт.

With cab

1шт.

3

5092194

FENDER

RH, JX55-JX65-JX75-JX85

1шт.

With cab

1шт.

3

5093580

FENDER

RH,JX95

1шт.

With cab

1шт.

4

5092195

FENDER

LH, JX55-JX65-JX75-JX85

1шт.

With cab

1шт.

4

5093581

FENDER

LH, JX95

1шт.

With cab

1шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

6шт.

6

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

20шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

16шт.

8

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

9

14193290

NUT

4шт.

10

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

14шт.

11

5093850

PLUG,9mm OD

D=9

6шт.

12

5089481

CAP,17mm OD

6шт.
