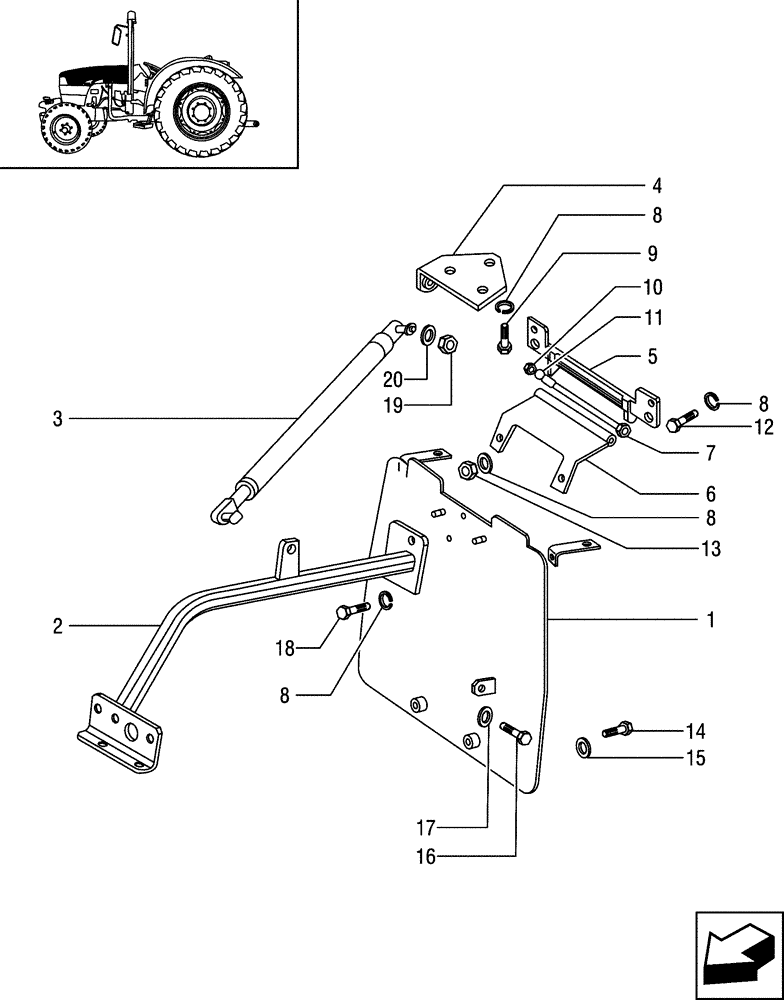

Запчасти Case IH JX85 (1.83.0/01[03]) - HOODS - FOR STRADDLE VERSION - C7048 (08) - SHEET METAL

1

87484481

GUARD

, Start Serial: D6048

1шт.

1

5096775

GUARD

, Serial Range: -C7048

1шт.

2

5096774

SUPPORT

JX55-JX65

1шт.

2

5096961

SUPPORT

JX75-JX85

1шт.

2

5096962

SUPPORT

JX95

1шт.

3

5097656

GAS STRUT

1шт.

4

47130477

SUPPORT

1шт.

5

5097318

HINGE

1шт.

6

5096776

HINGE

1шт.

7

16046524

SCREW,M8 x 170mm

M8 x 170

1шт.

8

10569374

LOCK WASHER,M8

11шт.

9

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

M8 x 14

3шт.

10

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

11

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

1шт.

12

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

13

16100821

NUT,M8, Cl 10

2шт.

14

11106621

BOLT,Hex, M10 x 35mm, Cl 8.8, Full Thd

4шт.

15

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

4шт.

16

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

17

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

18

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

19

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

2шт.

20

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.
