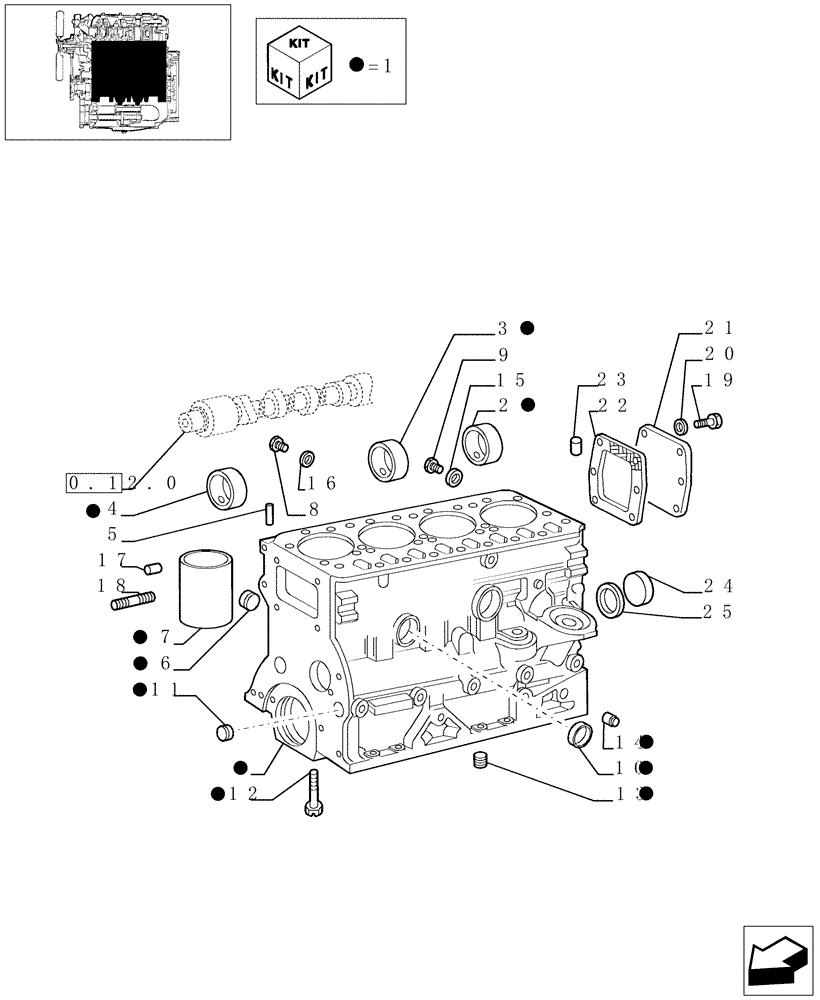

Запчасти Case IH JX85 (0.04.0/03[01]) - CRANKCASE AND CYLINDERS (BEFORE S/N 13286) (01) - ENGINE

1

98444087

CYLINDER BLOCK

1шт.

2

4718620

BUSHING,49.53mm ID x 53.93mm OD x 25mm L

1шт.

3

4718619

BUSHING,50.63mm ID x 54.53mm OD x 28mm L

1шт.

4

9973969

BUSHING,51.08mm ID x 54.93mm OD x 28mm L

1шт.

5

14165470

LOCK PIN,M5 x 10, Slotted

1шт.

6

14282770

PLUG,M36, Tapered, Stainless

4шт.

7

4770623

LINER, ENGINE CYLIND

+0.0

4шт.

7

4770624

LINER, ENGINE CYLIND

+0.2

4шт.

8

98415314

PLUG

M22 x 1.5

1шт.

9

4665029

PLUG

M42 x 1.5

1шт.

10

14329901

PLUG,M40, Tapered

1шт.

11

14328501

PLUG,M16, Tapered

5шт.

12

4792169

BOLT,Hex, M14 x 1.5 x 115mm

M14 x 1.5 x 137

10шт.

13

99434268

PLUG

M16 x 1.5

1шт.

14

99434231

PLUG

M10 x 1.25

1шт.

15

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

16

10265460

SEAL

D=49 x 42 x 1.5

1шт.

17

10839610

DOWEL,M8 x 12mm

D=8 x 12 mm

2шт.

18

13517821

STUD,M8 x 1.25 x 60mm, Cl 8.8

M8 x 60

1шт.

19

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

6шт.

20

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

M8 x 16 x 1.4

6шт.

21

4653282

COVER

1шт.

22

99445564

GASKET

1шт.

23

4846850

DOWEL,M9 x 12mm

9 x 12

2шт.

24

98412737

PLUG,55mm ID x 63.93mm OD x 8mm Thk, w/O-Ring

M63

1шт.

25

17284481

GASKET

D=58.4 x 2.6 mm

1шт.
