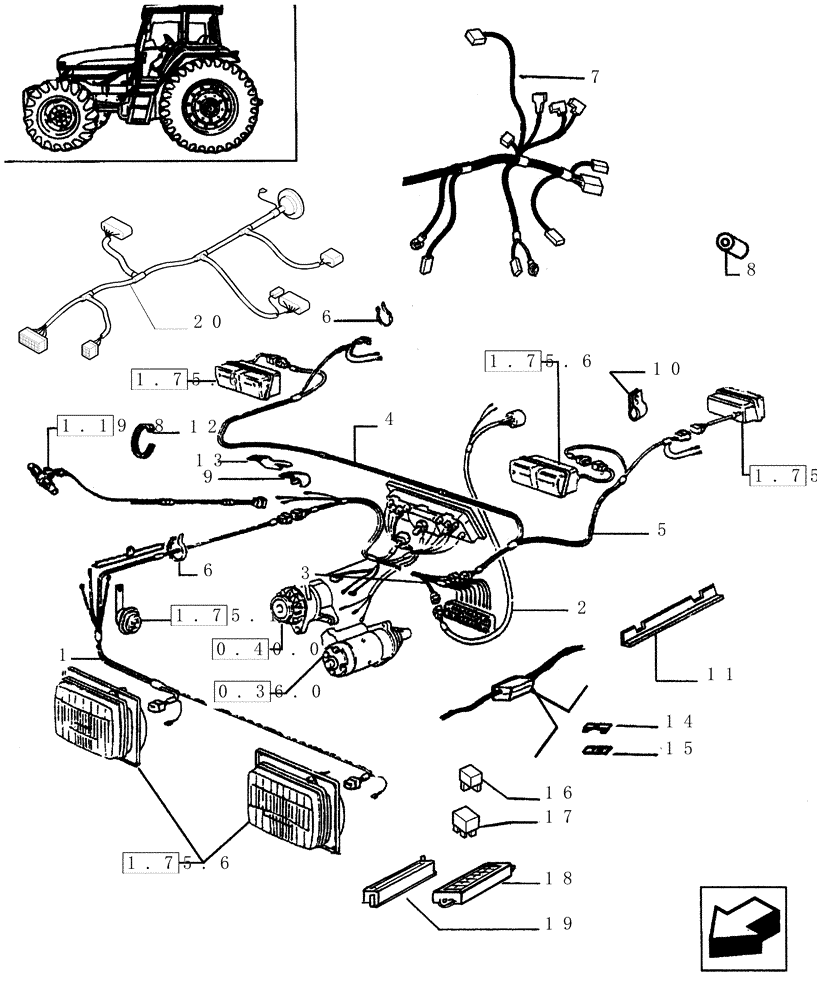

Запчасти Case IH JX85 (1.75.4) - VARIOUS WIRES (06) - ELECTRICAL SYSTEMS

1

5092140

WIRE HARNESS

Head Lamp

1шт.

2

5089472

WIRE HARNESS

Chassis/Transmission

1шт.

3

5093604

WIRE HARNESS

W/Fusebox W/Cab

1шт.

3

5093605

WIRE HARNESS

L/Fusebox W/Cab

1шт.

3

5093606

WIRE HARNESS

W/Fusebox L/Cab

1шт.

3

5093607

WIRE HARNESS

L/Fusebox L/Cab

1шт.

4

5089474

WIRE HARNESS

RH, Lamps

1шт.

5

5089475

WIRE HARNESS

LH, Lamps

1шт.

6

5112712

COLLAR,M4.8 x 283

10шт.

7

5094100

WIRE HARNESS

Cab Interior

1шт.

8

5093911

GROMMET

1шт.

9

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

1-14

1шт.

10

5088304

CLAMP

4шт.

11

5093288

COVER

2шт.

12

5093416

CLIP

2шт.

13

5121360

LOCKING PLATE

1шт.

14

5080122

FUSE,40A, Strip

40 Amp

1шт.

15

5080123

FUSE

80 Amp

1шт.

16

5080366

RELAY,12V, 30A

3шт.

17

5080380

RELAY,12V, 30A

1шт.

18

5080367

FUSE BOX

2шт.

19

5080368

COVER

2шт.

20

87492085

WIRE HARNESS

Chassis

1шт.
