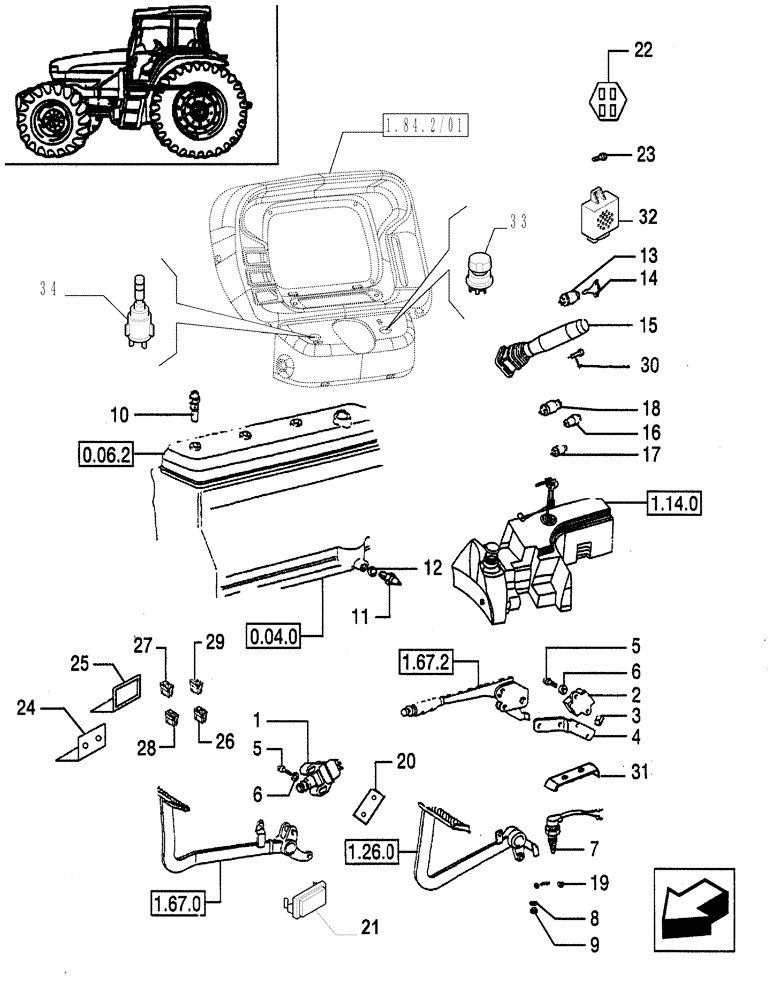

Запчасти Case IH JX85 (1.75.0) - ELECTRIC CONTROLS (06) - ELECTRICAL SYSTEMS

1

47132449

SWITCH

PTO Safety

1шт.

2

5093385

PUSH BUTTON SWITCH

Hand Brake Warning

1шт.

3

5086015

CAP

1шт.

4

5090868

BRACKET

1шт.

5

86511824

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 20mm, Cl 4.8

8шт.

6

10571379

LOCK WASHER,M4

8шт.

7

5140584

SWITCH

Starter Safety Switch 35A, Serial Range: -C6373

1шт.

7

87660978

NEUTRAL START SWITCH

Starter Safety Switch 35A, Start Serial: D6373

1шт.

8

10572079

LOCK WASHER,M14

1шт.

9

10791311

THIN NUT,M14 x 1.5, Cl 04

1шт.

10

5086043

SWITCH,Water Temperature

Water Temperature

1шт.

11

5107603

PRESSURE SWITCH

Engine Oil

1шт.

12

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

13

5129862

IGNITION SWITCH

1шт.

14

47126500

IGNITION KEY

Red

2шт.

15

5089705

SWITCH

Lights, Horn, Directional Signals

1шт.

16

5122659

FLASHER SWITCH

Emergency, HAZARD

1шт.

17

5086006

SWITCH

Thermostarter

1шт.

18

5094412

CIGARETTE LIGHTER

1шт.

19

10794011

NUT,M4, Cl 8

4шт.

20

5128492

COVER PLATE

1шт.

21

5166218

PLUG,Switch

2шт.

22

5089568

SUPPORT

Switch

1шт.

23

15688501

SELF-TAP SCREW,Pan Hd, M10 x 22mm

3шт.

24

5089576

SUPPORT

For Heater-Cab

1шт.

25

5089583

SUPPORT

For Radio, Cab

1шт.

26

5094131

WINDSHIELD WIPER SWI

Wiper Spray

1шт.

27

5089431

WINDSHIELD WIPER SWI

1шт.

28

87472544

SWITCH ASSY

Front Work Lamp

1шт.

29

5089706

LIGHT SWITCH

Rear Work Lamp, Serial Range: -C5622

1шт.

29

87551489

LIGHT SWITCH

Rear Work Lamp, Start Serial: D5622

1шт.

30

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

4шт.

31

5093339

BRACKET

, Serial Range: -C7007

1шт.

32

5188605

BUZZER,12V, 0.7A

Time Delay

1шт.

33

5086008

SWITCH

1шт.

34

5086007

SWITCH

1шт.
