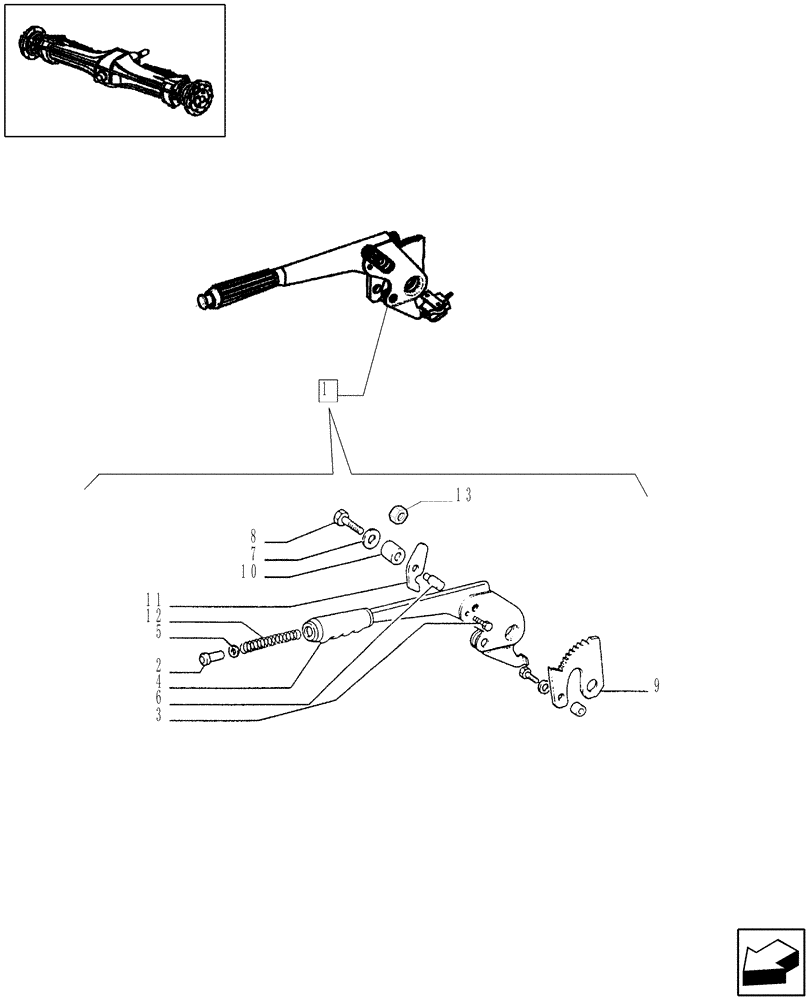

Запчасти Case IH JX85 (1.67.2/ A) - HAND BRAKE - PARTS COMPONENTS (05) - REAR AXLE

1

5089160

HAND BRAKE

Assy

1шт.

2

4985122

BUTTON,5mm ID x 10mm OD x 30mm L

1шт.

3

4985127

RIVET,23mm OD x 4mm D

1шт.

4

5105572

HANDLE GRIP

1шт.

5

5110154

SPRING WASHER,5.15mm ID x 14mm OD x 1.5mm Thk

1шт.

6

5110157

PIN,8mm OD x 25.5mm L

1шт.

7

5111658

WASHER,17mm ID x 35mm OD x 3mm Thk

17 x 35 x 3

1шт.

8

11391521

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

1шт.

9

5122060

TOOTHED SECTOR

1шт.

10

5122161

BUSHING,17mm ID x 22mm OD x 20mm L

1шт.

11

5122165

PAWL

1шт.

12

5122223

SPRING

1шт.

13

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

1шт.
