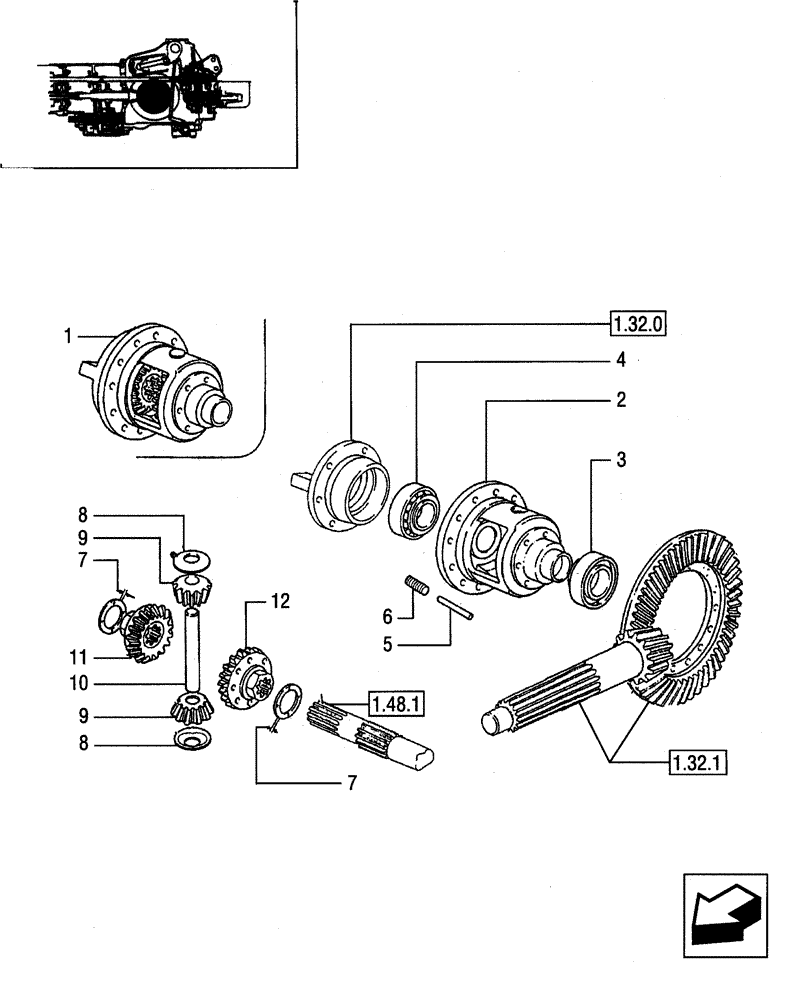

Запчасти Case IH JX85 (1.32.4[02]) - DIFFERENTIAL GEARINGS - DIFFERENTIAL BOX AND GEARS (03) - TRANSMISSION

1

5090543

DIFFERENTIAL

JX95

1шт.

1

5117236

DIFFERENTIAL GEAR

JX75-JX85

1шт.

2

5090264

CASE

JX95

1шт.

2

5173246

HOUSING

JX75-JX85

1шт.

3

26799990

TAPERED BEARING,55mm ID x 100mm OD x 22.75mm W

LH, 55 x 100 x 22.75

1шт.

4

24903460

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

D=65 x 100 x 23

1шт.

5

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

6

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

w/FCE

1шт.

7

5144801

THRUST WASHER,51mm ID x 70mm OD x 1.4mm Thk

2шт.

7

4997235

THRUST WASHER,51mm ID x 70mm OD x 1.5mm Thk

2шт.

7

4997236

THRUST WASHER,51mm ID x 70mm OD x 1.6mm Thk

2шт.

7

5138267

THRUST WASHER,51mm ID x 70mm OD x 1.7mm Thk

2шт.

7

5144802

THRUST WASHER,51mm ID x 70mm OD x 1.8mm Thk

2шт.

7

5170588

THRUST WASHER,51mm ID x 70mm OD x 1.9mm Thk

2шт.

7

5170589

THRUST WASHER,51mm ID x 70mm OD x 2mm Thk

2шт.

7

5182769

THRUST WASHER,51mm ID x 70mm OD x 2.1mm Thk

2шт.

7

5182770

THRUST WASHER,51mm ID x 70mm OD x 2.2mm Thk

2шт.

8

4991658

THRUST WASHER,25mm ID x 54.5mm OD x 1.5mm Thk

JX75, JX85

2шт.

8

5089372

THRUST WASHER

JX95

2шт.

9

4991695

IDLER PINION,11T

JX75, JX85

2шт.

9

5089371

GEAR

JX95

2шт.

10

5094841

PIN

JX75, JX85

1шт.

10

5089373

PIN

JX95

1шт.

11

5149551

PLANETARY GEAR,19T

1шт.

12

4997230

PLANETARY GEAR,19T

1шт.
