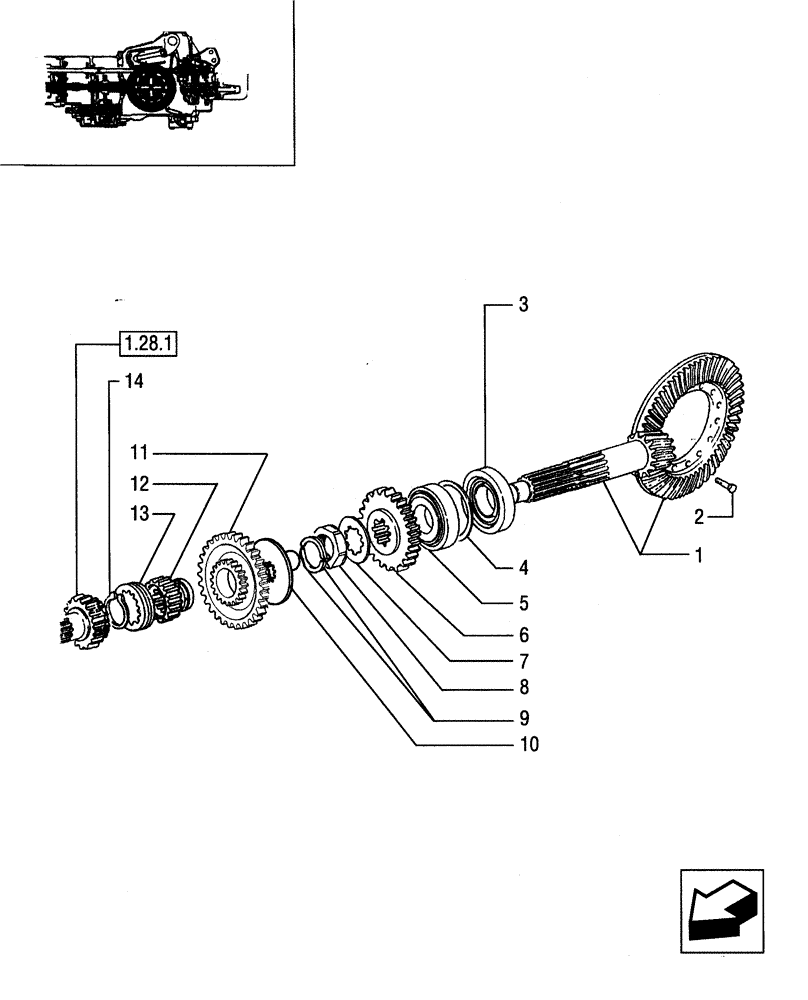

Запчасти Case IH JX85 (1.32.1[07]) - CENTRAL REDUCTION GEARS - BEVEL GEAR PAIR AND DRIVEN GEARS (03) - TRANSMISSION

1

5149442

BEVEL GEAR

(11/43), Ring & Pinion

1шт.

2

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

12шт.

3

5138664

TAPERED BEARING,45mm ID x 100mm OD x 38.25mm W

1шт.

4

5086493

SHIM KIT

1шт.

5

5130990

TAPERED BEARING,45mm ID x 100mm OD x 20mm W

1шт.

6

5131674

DRIVEN GEAR

1шт.

7

5119261

LOCK WASHER,38mm ID x 70mm OD x 1.5mm Thk

1шт.

8

5117744

NUT

1шт.

9

5127762

HALF-RING

2шт.

10

5131681

SPACER

2шт.

11

5131680

DRIVEN GEAR

1шт.

12

5125009

SPLINED COUPLING,10T Internal / 23T External

1шт.

13

5125010

SLEEVE,23T

1шт.

14

11068976

SNAP RING,M42, Ext

1шт.
