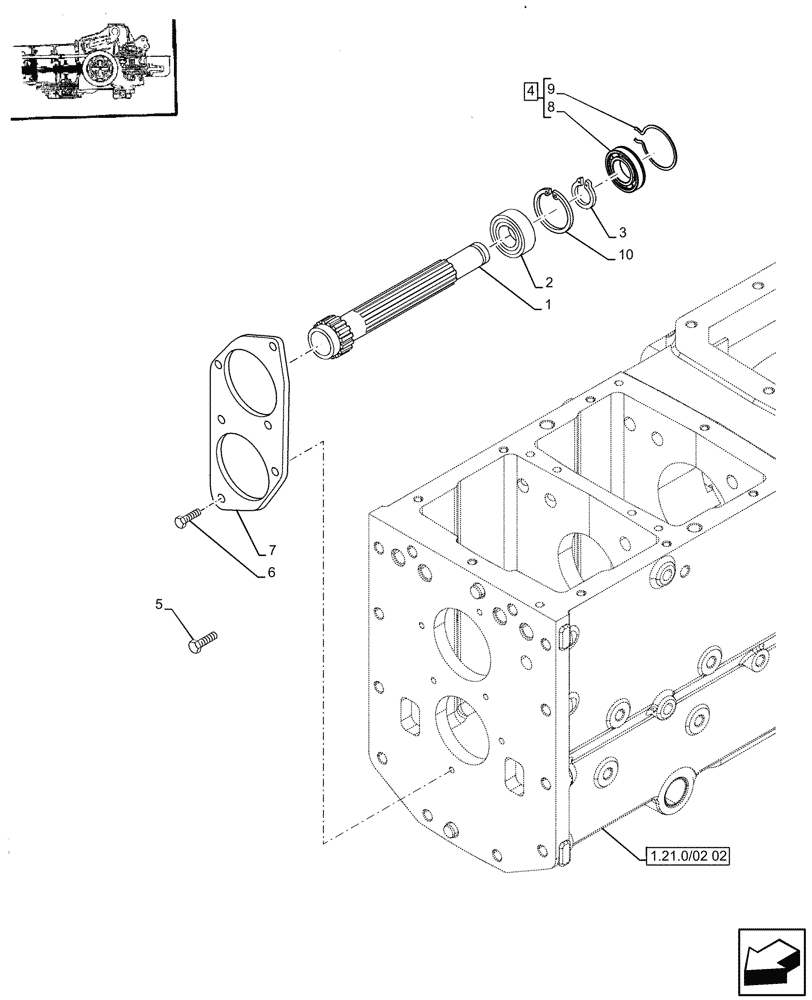

Запчасти Case IH JX85 (1.28.1/03[05]) - (VAR.115) TRANSMISSION, MAIN SHAFT, 12+12 SYNCR+CREEPER (03) - TRANSMISSION

1

5160658

MAIN SHAFT

1шт.

2

84495786

BALL BEARING

1шт.

3

11068876

SNAP RING,M40, Ext

1шт.

4

28996330

BALL BEARING,45mm ID x 85mm OD x 19mm W

Incl. 8-9

1шт.

5

14238121

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

6

14238024

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

7

5137550

COVER

1шт.

8

28996100

BALL BEARING

1шт.

9

5127689

LOCKING RING

1шт.

10

11062176

CIRCLIP,M85, Int

1шт.
