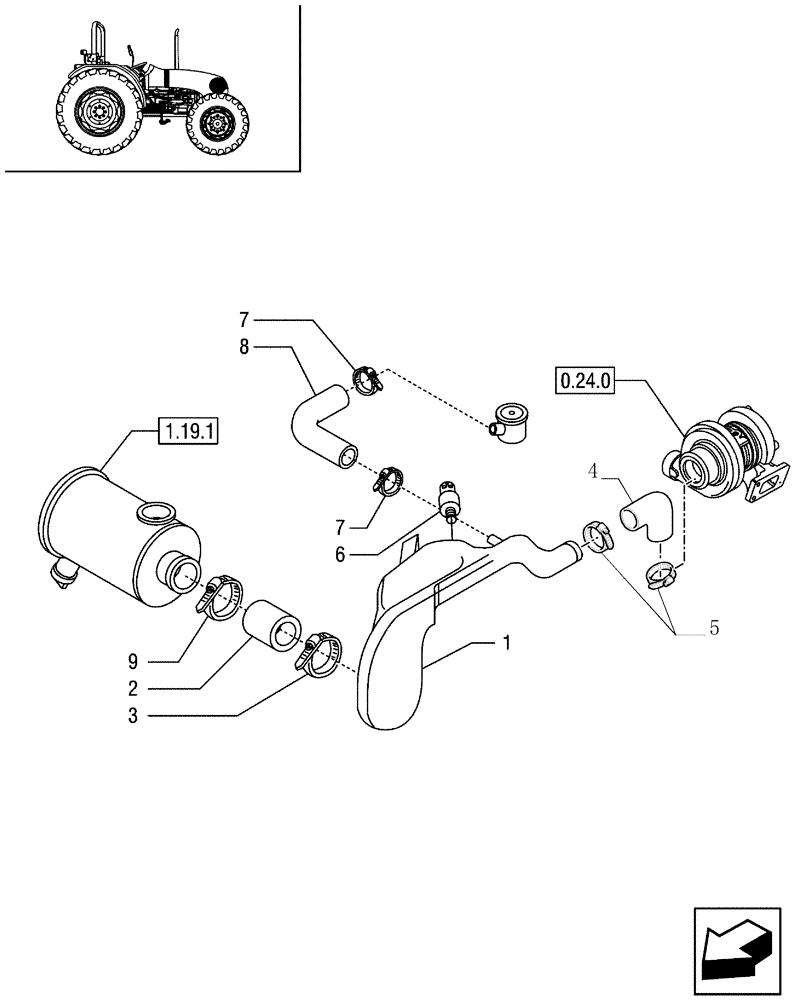

Запчасти Case IH JX85 (1.19.1/03[02]) - DRY AIR FILTER - SLEEVES AND COLLARS - FOR STRADDLE VERSION (02) - ENGINE EQUIPMENT

1

5097020

AIR INTAKE TUBE

JX55-JX75, Serial Range: -C6261

1шт.

1

5097022

AIR INTAKE TUBE

JX65-JX85-JX95, Serial Range: -C6261

1шт.

1

5083587

INTAKE ASSY

JX55-75, Start Serial: D6261

1шт.

1

5083588

INTAKE ASSY

JX65-85-95, Start Serial: D6261

1шт.

2

5097024

HOSE,76.00 mm ID, 89.00 mm ID x 60.00 mm

JX65-JX85-JX95

1шт.

2

5098168

HOSE

JX55-JX75

1шт.

3

5091614

COLLAR

1шт.

4

5094519

HOSE

JX85-JX95

1шт.

4

5097346

HOSE,48.00 mm ID, 66.00 mm ID x 108.00 mm

JX65

1шт.

4

5097347

HOSE

JX75

1шт.

4

5097348

HOSE

JX55

1шт.

5

5085782

CLAMP

2шт.

6

5138819

INDICATOR

1шт.

7

5085776

HOSE CLAMP

22 x 36

2шт.

8

5094791

HOSE,21.00 mm ID x 88.50 mm, SAE 100RG, SAE J517

JX85-JX95

1шт.

8

5096584

HOSE

JX65

1шт.

8

5097074

INTAKE AIR HOSE,21.00 mm ID x 123.00 mm, SAE 100RG ,SAE J517

JX55-JX75

1шт.

9

5096561

COLLAR

1шт.
