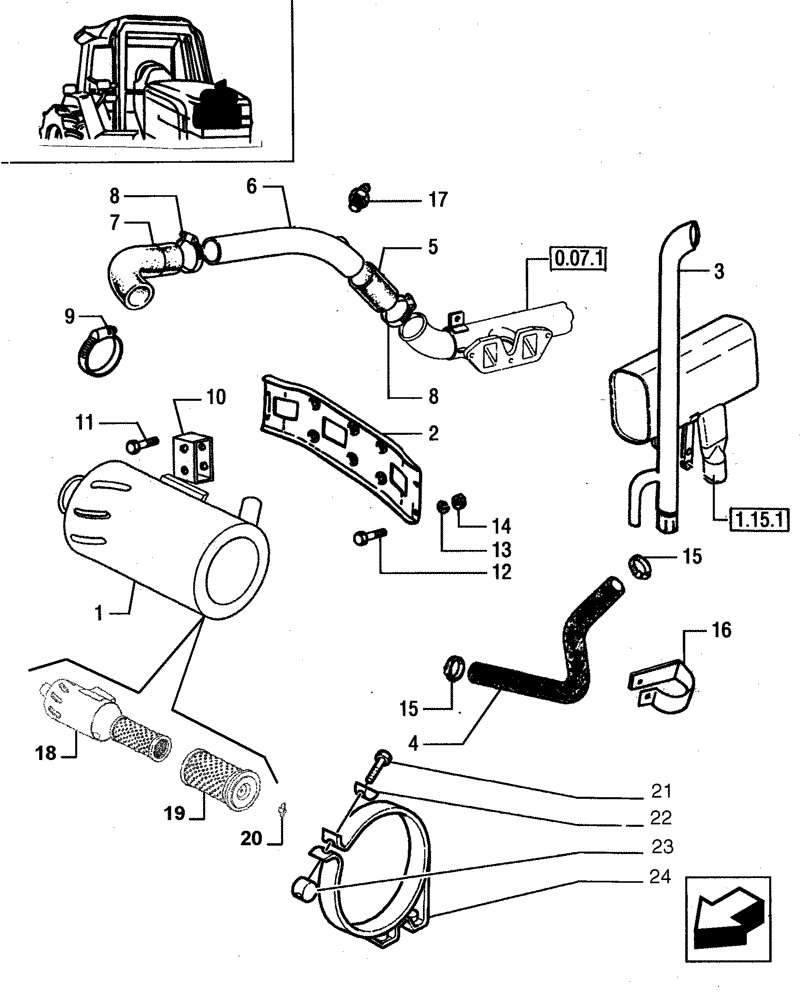

Запчасти Case IH JX85 (1.19.1/02[01]) - (VAR.199) AIR FILTER - BRACKET (02) - ENGINE EQUIPMENT

1

5153784

AIR FILTER

1шт.

2

5094792

SUPPORT

, Serial Range: -C4999

1шт.

3

5091485

EXHAUST SYSTEM PIPE

1шт.

4

5153521

INTAKE AIR HOSE,32.00 mm ID x 1100.00 mm

1шт.

5

5117303

HOSE,60.00 mm ID x 80.00 mm

1шт.

6

5093299

INTAKE AIR HOSE,335.00 mm

1шт.

7

5092638

ELBOW

1шт.

8

5085782

CLAMP

3шт.

9

5091614

COLLAR

1шт.

10

5092620

SPACER

, Serial Range: -C4999

1шт.

11

15215221

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

2шт.

12

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

, Serial Range: -C4999

4шт.

13

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

, Serial Range: -C4999

4шт.

14

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

, Serial Range: -C4999

4шт.

15

5085778

CLAMP

D=32 x 51

2шт.

16

5112712

COLLAR,M4.8 x 283

1шт.

17

5138819

INDICATOR

1шт.

18

1930537

ELEMENT

1шт.

19

87780710

ELEMENT

1шт.

20

79062701

NUT

1шт.

21

5120756

SCREW

M8 x 1.25 x 65, Start Serial: D4999

1шт.

22

5120754

PIN

, Start Serial: D4999

1шт.

23

5120755

PIN,16mm OD x 15mm L

, Start Serial: D4999

1шт.

24

5168072

BRACKET

, Start Serial: D4999

1шт.
