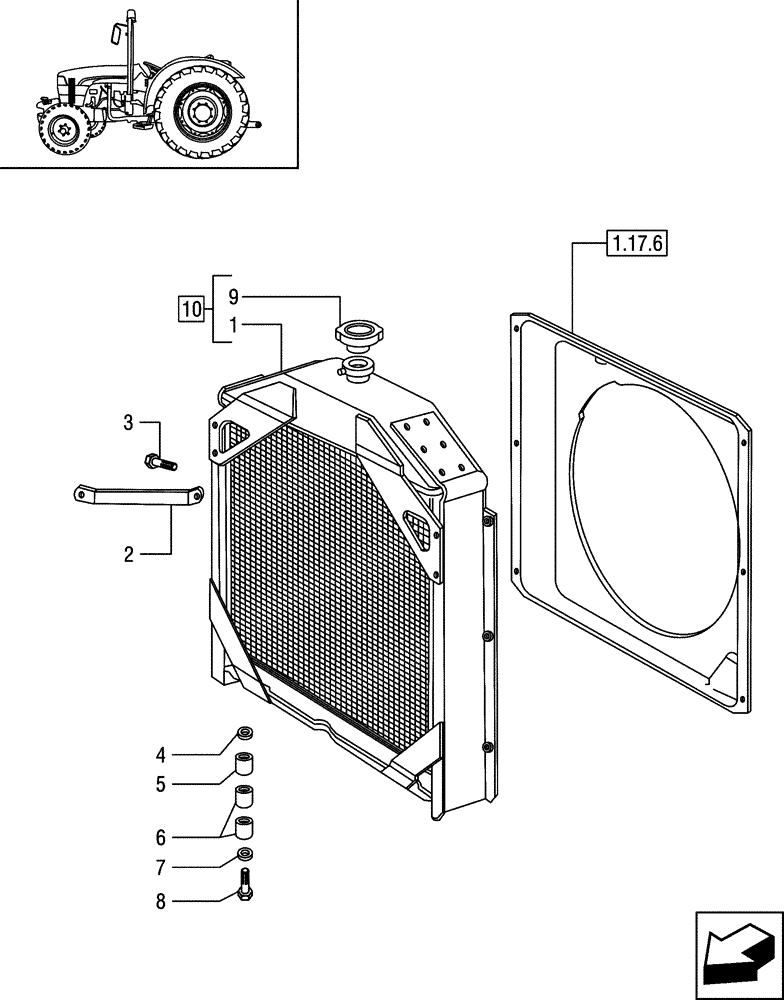

Запчасти Case IH JX85 (1.17.0/01) - RADIATOR - CAP AND BRACKET - FOR STRADDLE VERSION (02) - ENGINE EQUIPMENT

1

5172927

RADIATOR

JX55-JX65

1шт.

1

5172925

RADIATOR

JX75-JX85-JX95

1шт.

2

5097027

SUPPORT

1шт.

3

15697804

SELF-TAP SCREW,Hex Wshr Hd, M6 x 20mm

1шт.

3

15953404

SCREW,M6 x 20mm

1шт.

4

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

4шт.

5

5102703

SPACER,11mm ID x 15mm OD x 63mm L

2шт.

6

5108225

RUBBER MOUNTING

4шт.

7

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

2шт.

8

15971621

SCREW,Hex, M10 x 1.25 x 90mm, Cl 8.8

2шт.

9

4999682

RADIATOR CAP,Vented

1шт.

10

5172926

RADIATOR

JX75-JX85-JX95

1шт.

10

5172928

RADIATOR

JX55-JX65

1шт.
