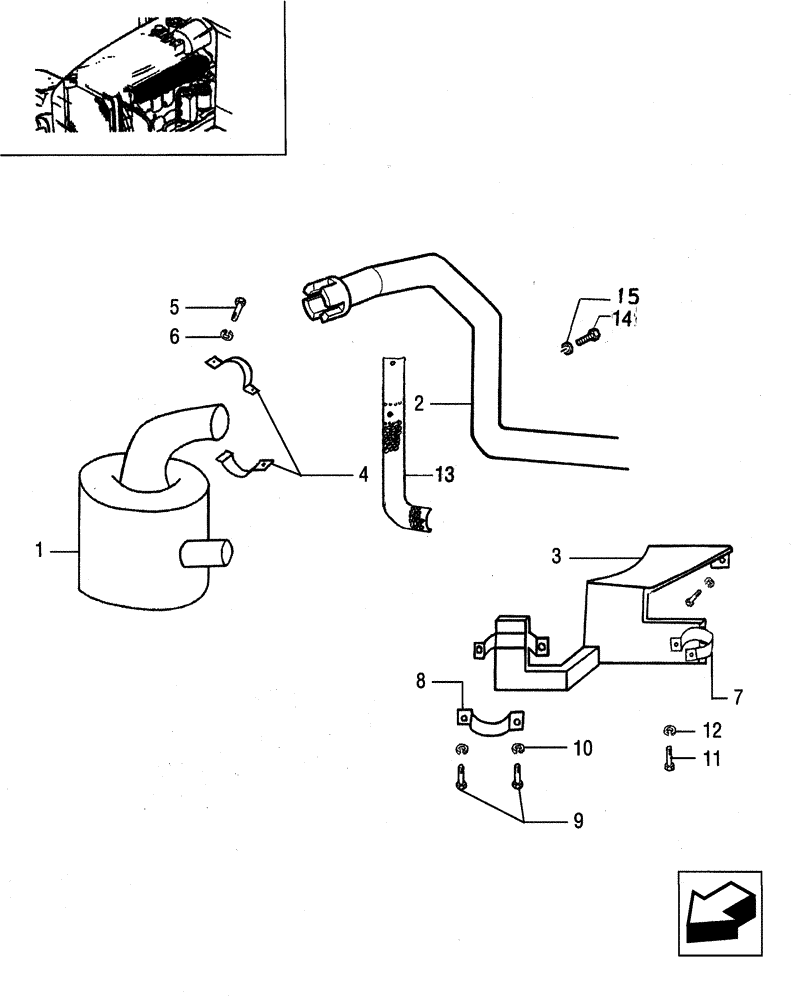

Запчасти Case IH JX85 (1.15.1/03[02]) - (VAR.150) MUFFLER, SUPPORT, PIPES AND COLLARS (02) - ENGINE EQUIPMENT

1

5182593

MUFFLER

1шт.

2

5093069

EXHAUST SYSTEM PIPE

1шт.

3

5091836

LEVER

1шт.

4

5183964

HOSE CLIP

1шт.

5

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

2шт.

6

10571579

LOCK WASHER,M6

2шт.

7

5180679

HOSE CLIP

1шт.

8

5181586

COLLAR

1шт.

9

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

9шт.

10

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

9шт.

11

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

12

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

13

5093099

GUARD

1шт.

14

16042921

BOLT,Hex, M8 x 10mm, Cl 8.8, Full Thd

3шт.

15

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.
