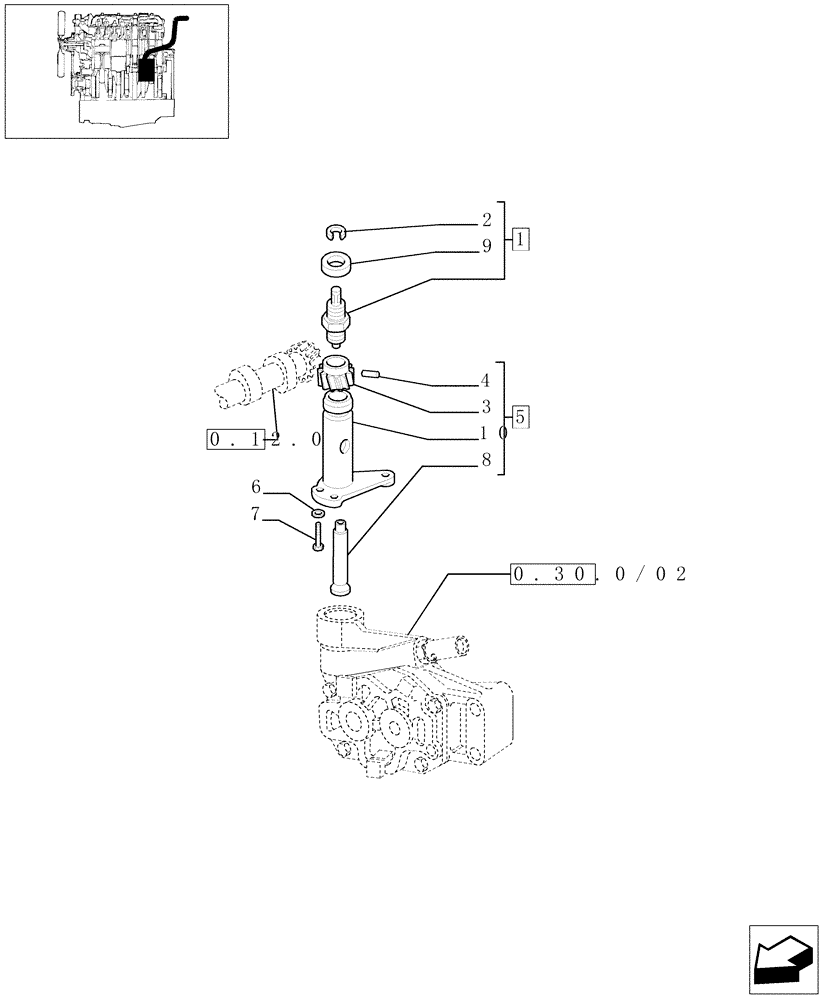

Запчасти Case IH JX85 (0.42.0[04]) - TACHOMETER DRIVE (AFTER S/N 13287) (01) - ENGINE

1

500303538

ADAPTER

Assy

1шт.

2

13397476

SNAP RING,M10.8, Int

1шт.

3

4599726

DRIVEN GEAR

1шт.

4

4605293

PIN

1шт.

5

98415187

SUPPORT

Assy

1шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

7

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

8

4613297

SPINDLE

Assy

1шт.

9

40102813

GASKET

M6 x 15 x 4

1шт.

10

98415076

SUPPORT

1шт.
