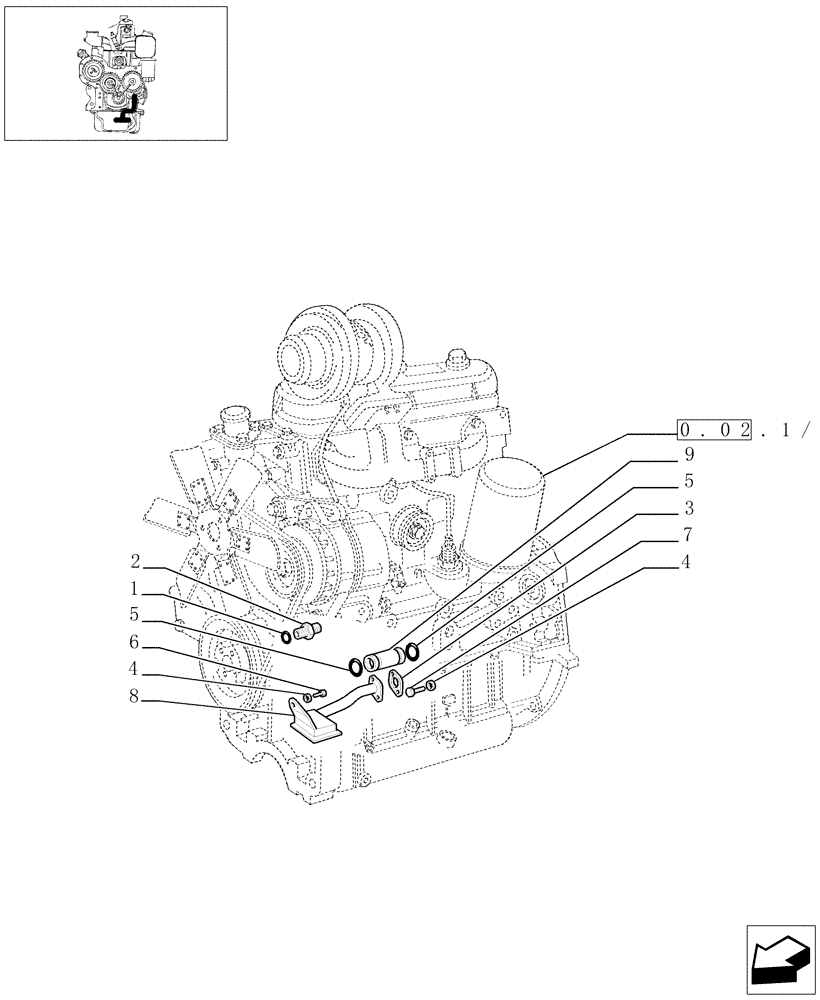

Запчасти Case IH JX85 (0.30.5/01[03]) - PIPING ENGINE OIL (AFTER S/N 13287) (01) - ENGINE

1

561293

O-RING,12mm OD x 2.5mm Width

1шт.

2

4785501

HYD CONNECTOR,M10 x 1.25

M10 x 1.25

1шт.

3

4852561

GASKET,0.8mm Thk

1шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

5

14463281

O-RING,0.984" ID x 0.139" Width

2шт.

6

16605424

SCREW,Hex, M8

Cap, HH, CL 8.8, M8 x 1.25 x 16 mm

1шт.

7

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

8

504120190

TUBE

1шт.

9

98415136

RIGID TUBE

1шт.
