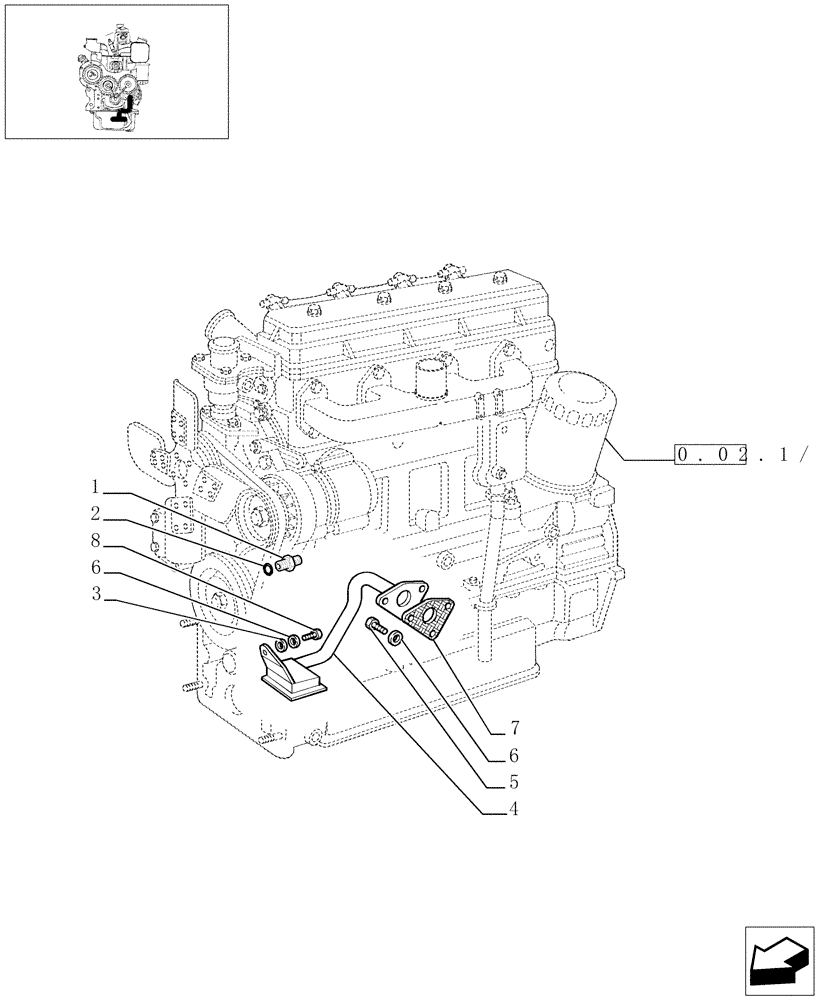

Запчасти Case IH JX85 (0.30.5/01[01]) - PIPING ENGINE OIL (BEFORE S/N 13286) (01) - ENGINE

1

4785501

HYD CONNECTOR,M10 x 1.25

M10 x 1.25, Start Serial: 702576M

1шт.

2

561293

O-RING,12mm OD x 2.5mm Width

, Start Serial: 702576M

1шт.

3

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

4

4684824

RIGID TUBE

1шт.

5

16605524

SCREW,Hex, M8 x 20mm

M8 x 1.25 x 20

3шт.

6

17089574

SEALING WASHER

D=8 mm

4шт.

7

98400788

GASKET,0.5mm Thk

M8 x 1.25 x 25

1шт.

8

16605424

SCREW,Hex, M8

Cap, HH, CL 8.8, M8 x 1.25 x 16 mm

1шт.
