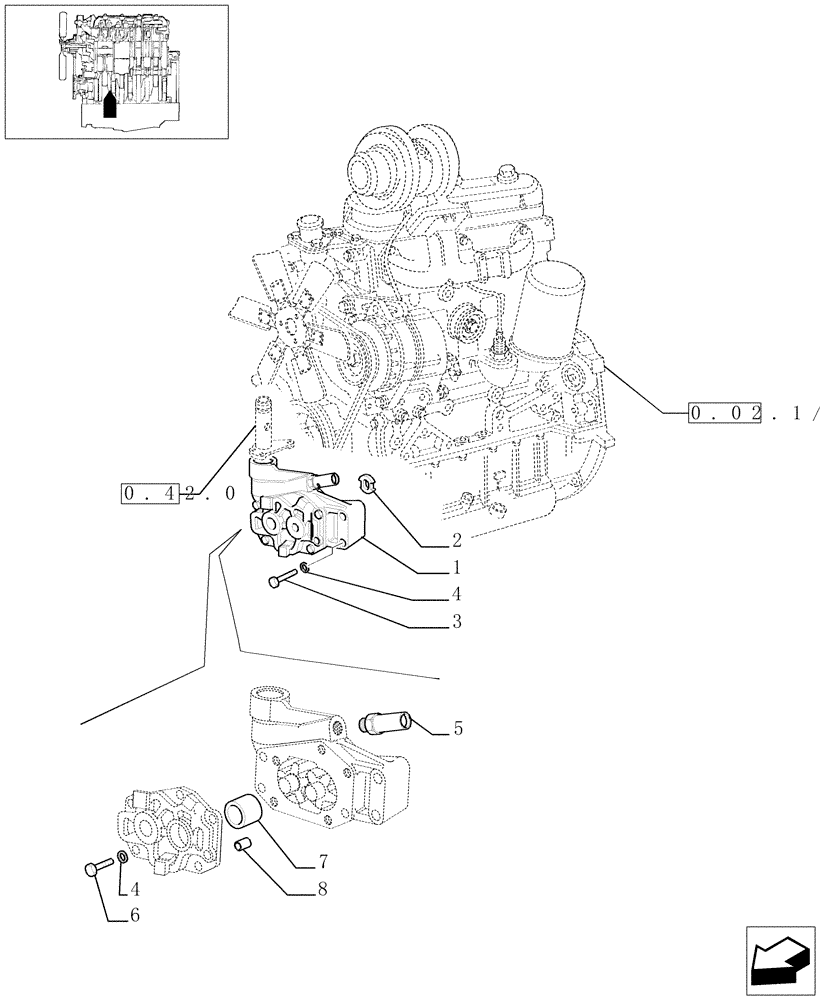

Запчасти Case IH JX85 (0.30.0/01[03]) - OIL PUMP (AFTER S/N 13287) (01) - ENGINE

1

98415162

ENGINE OIL PUMP

1шт.

98415162R

REMAN-ENG OIL PUMP

JX85 AFTER S/N 13287 (11/02-)

1шт.

98415162C

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

98415102

COUPLING RING

1шт.

3

16044621

SCREW,Hex, M8 x 70mm, Cl 8.8

4шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

9шт.

5

4834861

HYDRAULIC VALVE

1шт.

6

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

5шт.

7

4613291

BUSHING,17.62mm ID x 21.03mm OD x 12mm L

17 x 21 x 12

1шт.

7

4670940

SPARE PART

1шт.

8

10839610

DOWEL,M8 x 12mm

D=8 x 12 mm

1шт.
