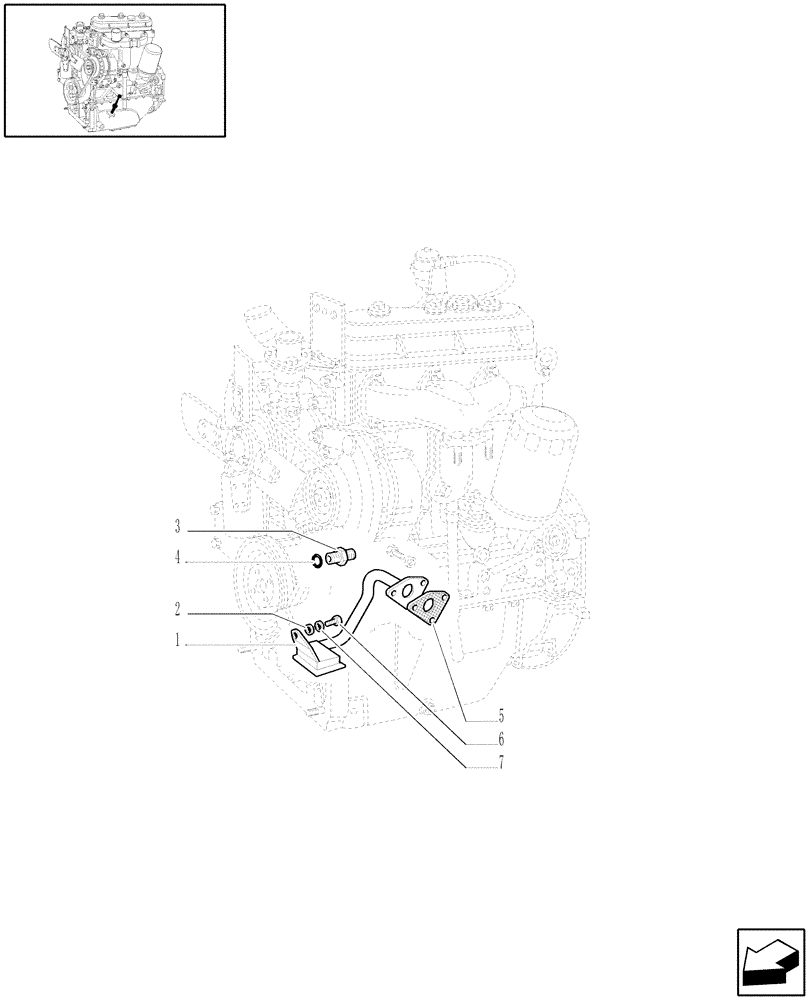

Запчасти Case IH JX80 (0.30.5/06) - (VAR.319-747) TTF ENGINE TIER2 - PIPING ENGINE OIL (01) - ENGINE

1

5097542

TUBE

1шт.

2

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

3

4785501

HYD CONNECTOR,M10 x 1.25

M10 x 1.25

1шт.

4

561293

O-RING,12mm OD x 2.5mm Width

1шт.

5

98400788

GASKET,0.5mm Thk

1шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

7

11198079

BELLEVILLE WASHER,M8 Bolt Size x 15mm OD x 1.8mm Thk

4шт.

8

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.
