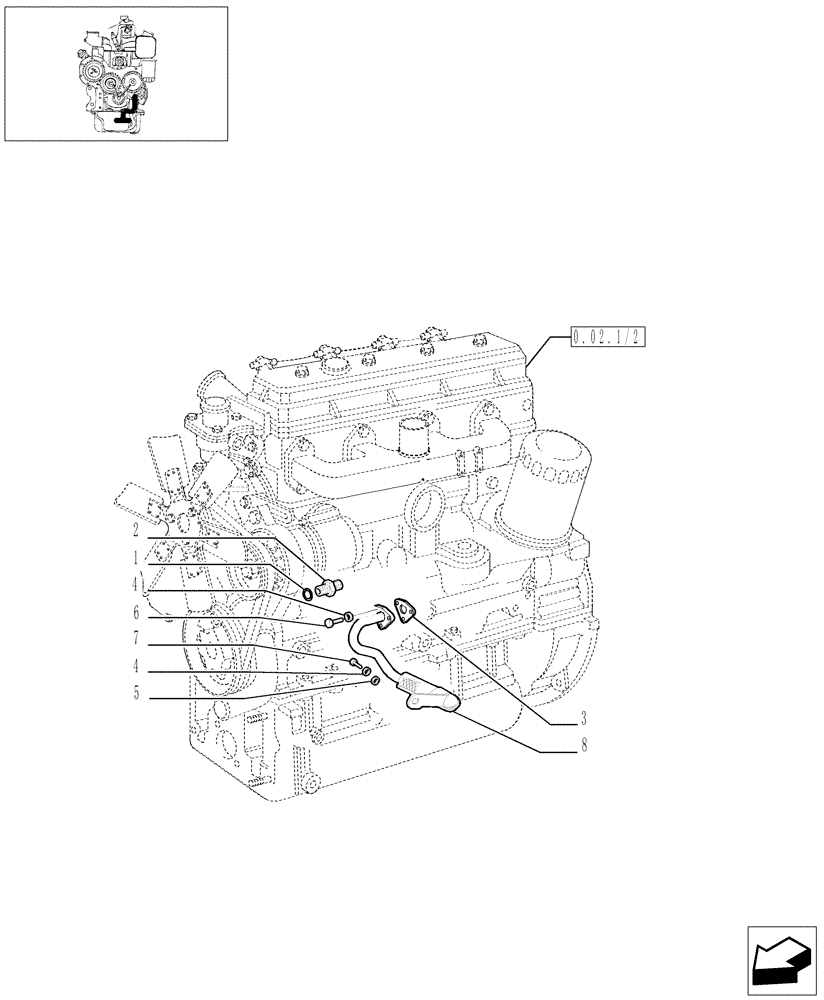

Запчасти Case IH JX80 (0.30.5/02) - PIPING ENGINE OIL (01) - ENGINE

1

561293

O-RING,12mm OD x 2.5mm Width

1шт.

2

4785501

HYD CONNECTOR,M10 x 1.25

M10 x 1.25

1шт.

3

98400788

GASKET,0.5mm Thk

M8 x 1.25 x 25

1шт.

4

11194079

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

4шт.

5

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

7

16605424

SCREW,Hex, M8

M8 x 22

1шт.

8

504120192

SUCTION PIPE

1шт.
