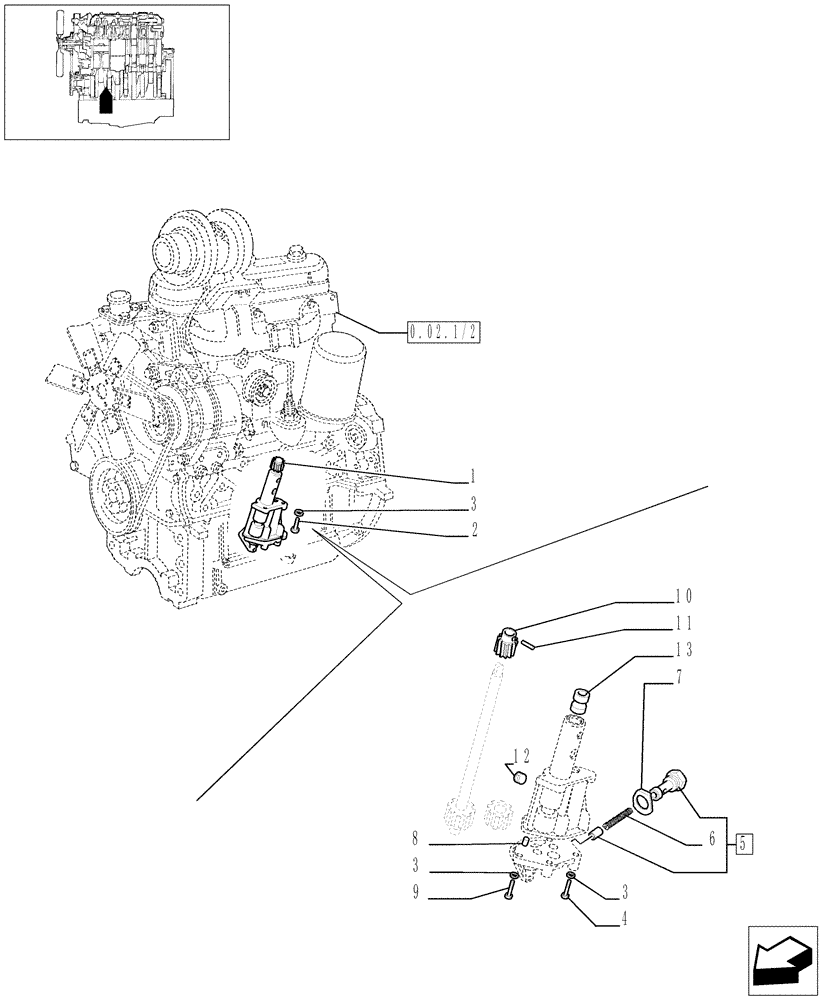

Запчасти Case IH JX80 (0.30.0/02) - OIL PUMP (01) - ENGINE

1

4705827

ENGINE OIL PUMP

1шт.

4705827R

REMAN-ENG OIL PUMP

JX80 (1/04-)

1шт.

4705827C

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

3

11198071

BELLEVILLE WASHER,M8 Bolt Size x 15mm OD x 1.8mm Thk

6шт.

4

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

5

4707153

CHECK VALVE

Assy

1шт.

6

4587731

SPRING

1шт.

7

4604941

PLATE

1шт.

8

10839510

DOWEL,M6 x 9

1шт.

9

16044224

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

10

4599726

DRIVEN GEAR

1шт.

11

4605293

PIN

1шт.

12

14325101

PLUG

1шт.

13

4673692

BUSHING

1шт.
