Запчасти Case IH JX80 (1.17.0/01[01A]) - (VAR.641-958) AIR CONDITIONING UNIT - RADIATOR - CAP AND BRACKET - D5834 (02) - ENGINE EQUIPMENT

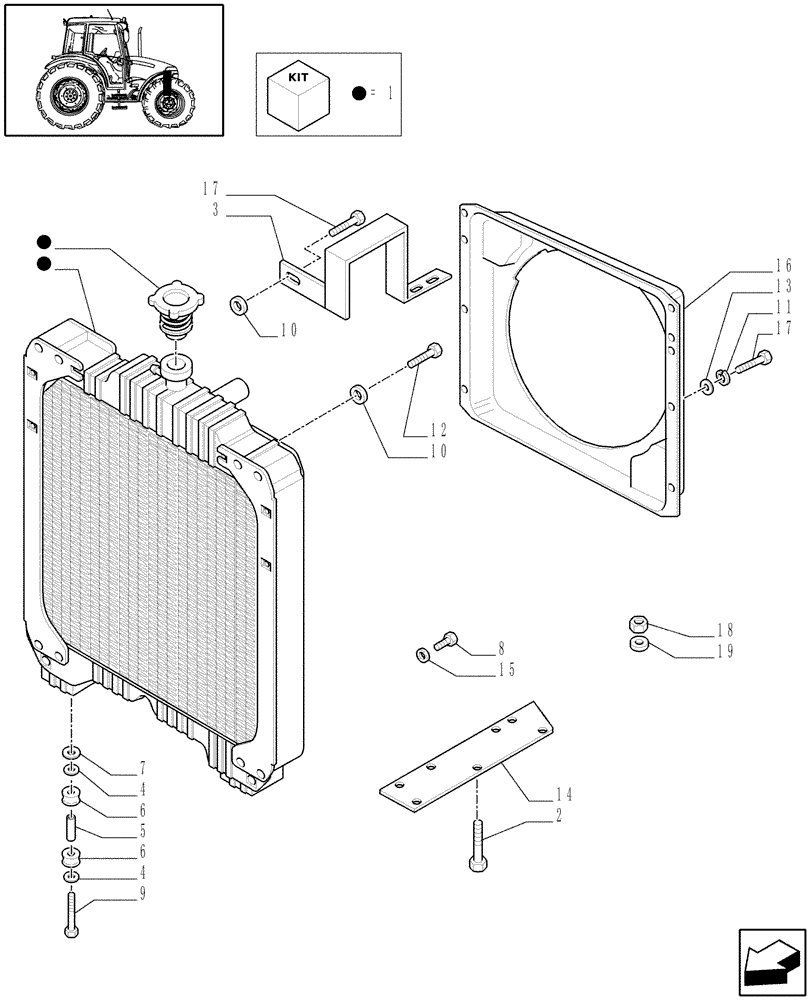

Схема запчастей Case IH JX80 - (1.17.0/01[01A]) - (VAR.641-958) AIR CONDITIONING UNIT - RADIATOR - CAP AND BRACKET - D5834 (02) - ENGINE EQUIPMENT
1
14
1
5
17
7
19
16
10
12
13
10
2
11
18
17
6
3
8
4
6
1
15
4
9

Артикул

Название

Примечание

Количество

1

5099122

RADIATOR

Assy

1шт.

See Also SGR 1.17.6 for over Heating Engine Kit

1шт.

2

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

JX70, JX80

6шт.

3

87721174

SUPPORT

1шт.

4

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

4шт.

5

5102703

SPACER,11mm ID x 15mm OD x 63mm L

2шт.

6

5108225

RUBBER MOUNTING

4шт.

7

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

2шт.

8

13274211

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd

2шт.

9

15971721

SCREW,Hex, M10 x 1.25 x 95mm, Cl 8.8

2шт.

10

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

11

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

14шт.

12

15697804

SELF-TAP SCREW,Hex Wshr Hd, M6 x 20mm

1шт.

13

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

6шт.

14

5093788

PLATE

JX70, JX80

2шт.

15

12643704

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

2шт.

16

5092572

GUARD

JX60

1шт.

16

5094445

SHROUD

JX70, JX80

1шт.

17

86624003

BOLT,Hex, M8 x 14mm, Cl 8.8, Full Thd

14шт.

18

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

8шт.

19

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

Выбрано товаров: 21
