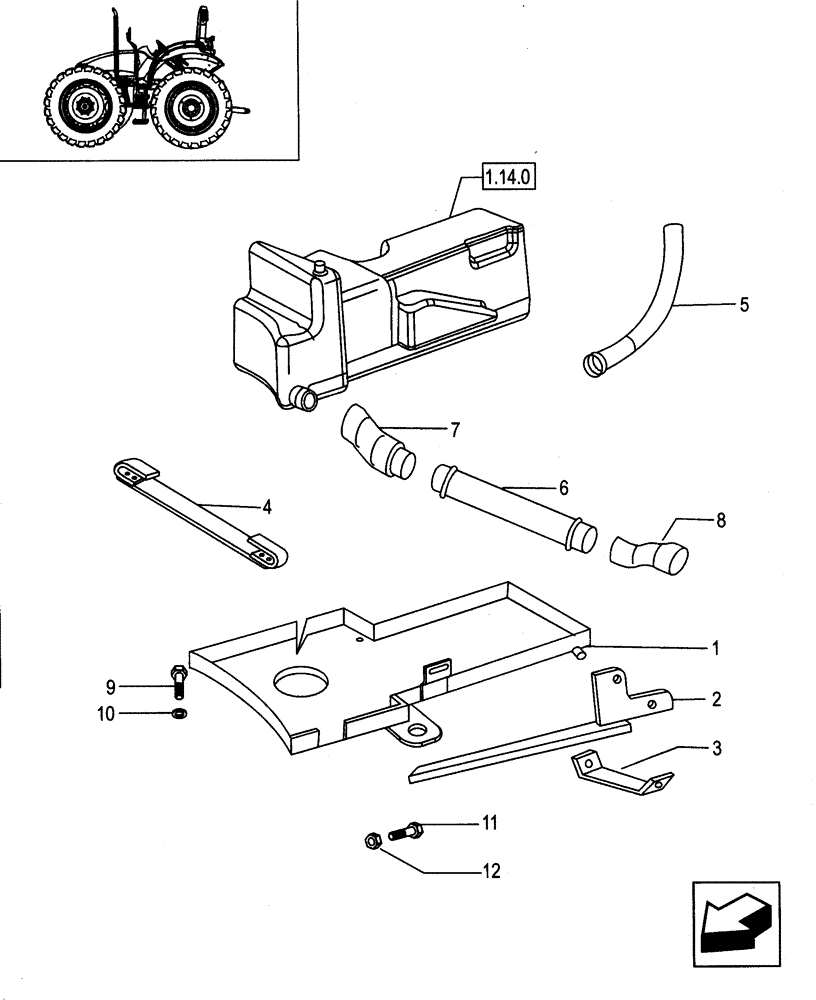

Запчасти Case IH JX80 (1.14.7/01[02]) - FUEL TANK - SUPPORT - FOR HIGH CLEARANCE VERSION (02) - ENGINE EQUIPMENT

1

5095772

PLATE

1шт.

2

5095729

SUPPORT

1шт.

3

5095731

SUPPORT

1шт.

4

5094937

STRAP

1шт.

5

5095750

PIPE

1шт.

6

5094935

PIPE

1шт.

7

5094933

HOSE,38.00 mm ID, 45.00 mm ID x 120.00 mm

1шт.

8

5094934

HOSE,38.00 mm ID, 45.00 mm ID x 140.00 mm, SAE J200

1шт.

9

16042921

BOLT,Hex, M8 x 10mm, Cl 8.8, Full Thd

1шт.

10

12642001

WASHER,8.15mm ID x 25mm OD x 1.5mm Thk

1шт.

11

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

12

12164711

NUT,M10 x 1.25, Cl 8

1шт.
