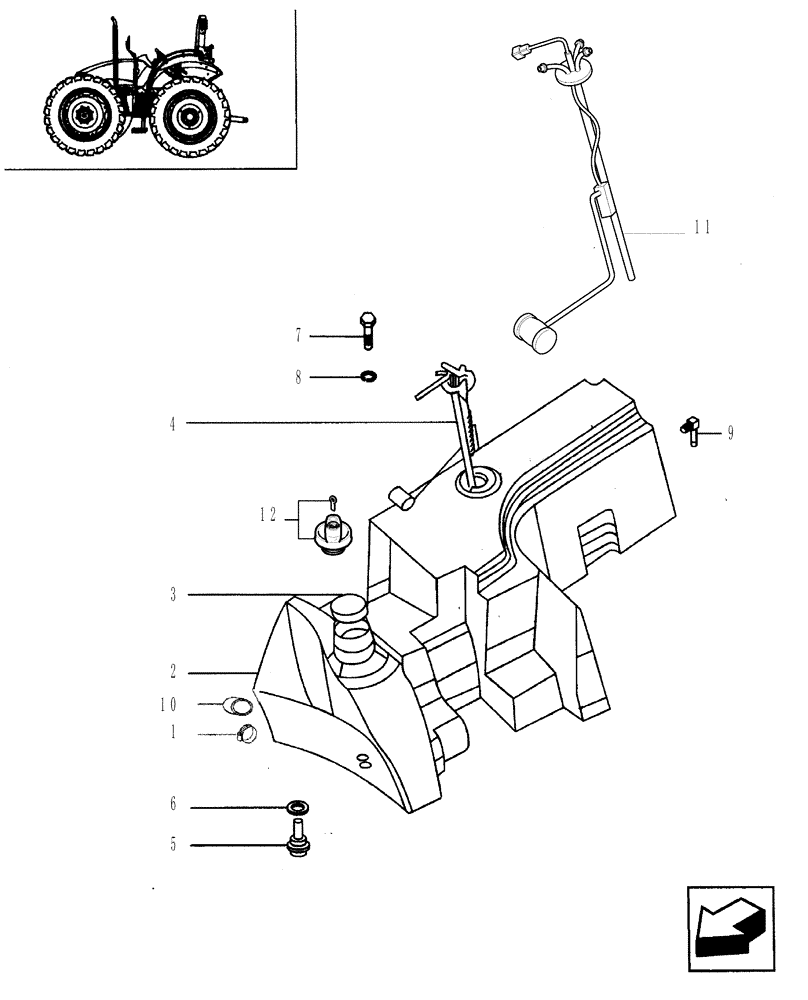

Запчасти Case IH JX80 (1.14.0/01[01]) - FUEL TANK - FOR HIGH CLEARANCE VERSION (02) - ENGINE EQUIPMENT

1

5085780

CLAMP

D=44 x 64

1шт.

2

5095768

FUEL TANK

1шт.

3

82009352

FILLER CAP

1шт.

4

5094468

LEVEL GAUGE

, Serial Range: -C5185

1шт.

5

5094121

PLUG,Hex socket, M24 x 1

1шт.

6

5093981

SEAL,23mm ID x 41mm OD x 3.8mm Thk

1шт.

7

13272411

SCREW,Pozidriv Pan Hd, M4 x 20mm, Cl 5.8, Full Thd

6шт.

8

10571379

LOCK WASHER,M4

6шт.

9

5091906

ELBOW

1шт.

10

5095395

DRAIN PLUG

1шт.

11

5096702

FUEL GAUGE

, Start Serial: D5185

1шт.

12

5094421

LOCKABLE FUEL CAP

W/Key

1шт.
