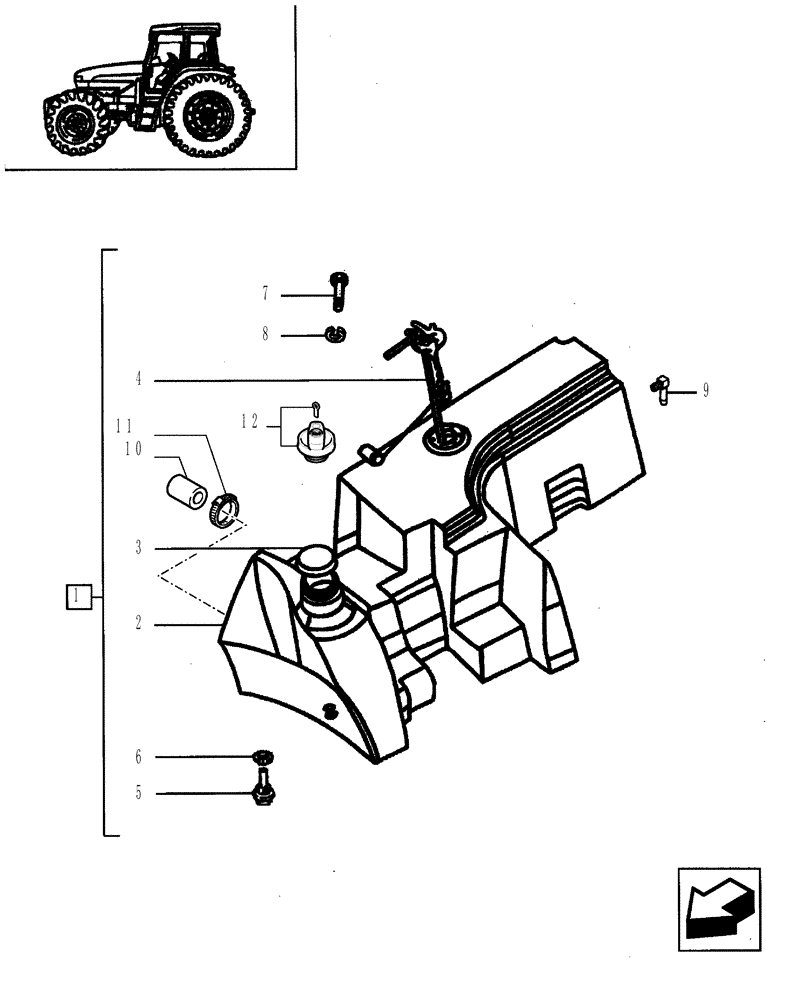

Запчасти Case IH JX80 (1.14.0) - FUEL TANK (02) - ENGINE EQUIPMENT

1

5095404

FUEL TANK

, Serial Range: HFJ013987-C6060

1шт.

1

87492454

FUEL TANK

, Start Serial: D6060

1шт.

2

5095386

FUEL TANK

1шт.

3

82009352

FILLER CAP

1шт.

4

5093647

SENDER UNIT

, Serial Range: -HFJ013986

1шт.

4

5096419

SENDER UNIT

, Start Serial: HFJ013987

1шт.

5

5094121

PLUG,Hex socket, M24 x 1

1шт.

6

5093981

SEAL,23mm ID x 41mm OD x 3.8mm Thk

1шт.

7

13272411

SCREW,Pozidriv Pan Hd, M4 x 20mm, Cl 5.8, Full Thd

6шт.

8

10571379

LOCK WASHER,M4

6шт.

9

5091906

ELBOW

1шт.

10

5095395

DRAIN PLUG

, Start Serial: HFJ013987

1шт.

11

5085780

CLAMP

D=44 x 64, Start Serial: HFJ013987

1шт.

12

5094421

LOCKABLE FUEL CAP

W/Key

1шт.
