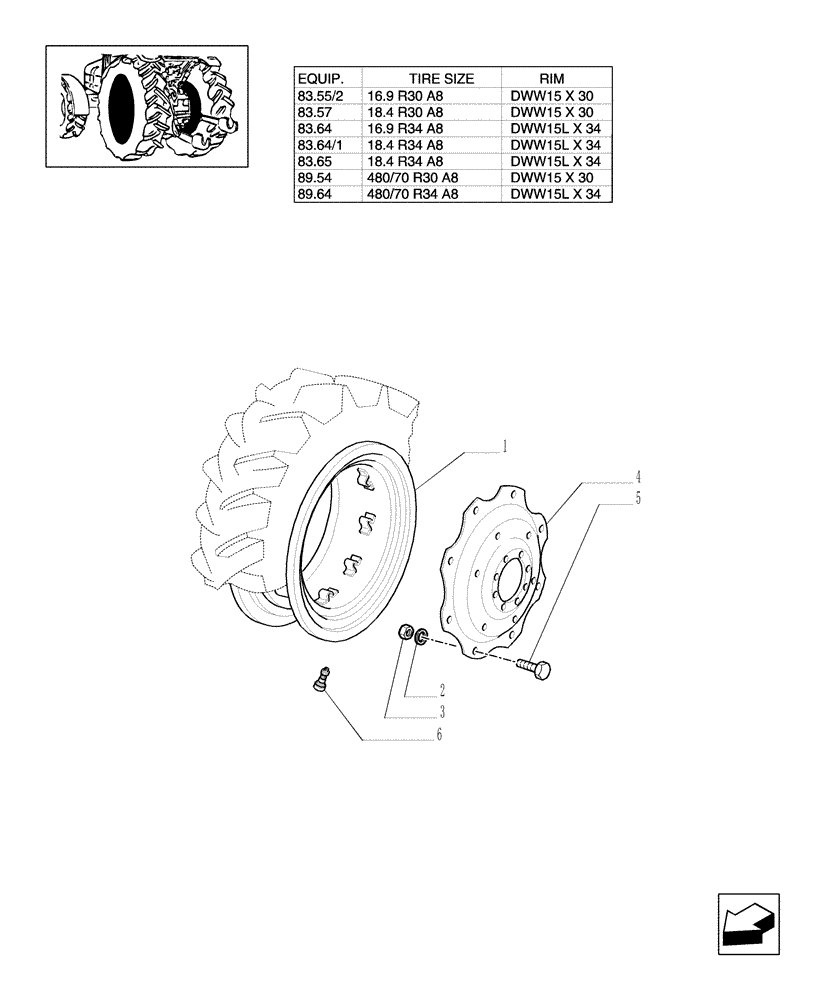

Запчасти Case IH JX80 (83.00[02]) - DRIVE WHEELS (11) - WHEELS/TRACKS

1

47128195

RIM,DWW15Lx30, 8 Bolts, CASE Silver

DWW15 x 30

2шт.

1

47128186

RIM,DWW15Lx34, 8 Bolts, CASE Silver

DWW15L x 34

2шт.

2

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

16шт.

3

10790524

NUT,M16 x 1.5

16шт.

4

47128174

WHEEL DISC,616mm DIA, 8 Bolts, CASE Silver

D=616

2шт.

4

47128170

WHEEL DISC,717.5mm DIA, 8 Bolts, CASE Silver

D=717.5

2шт.

5

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

16шт.

W/Equip. 83.55/2, 83.57, 89.54

1шт.

5

5131725

WHEEL BOLT,M16 x 1.5 x 125mm

16шт.

W/Equip. 83.64, 83.64/1, 83.65, 89.64

1шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

15983831

BOLT,Hex, M18 x 1.5 x 35mm, Cl 10.9

16шт.

8

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

19x40x6

16шт.
