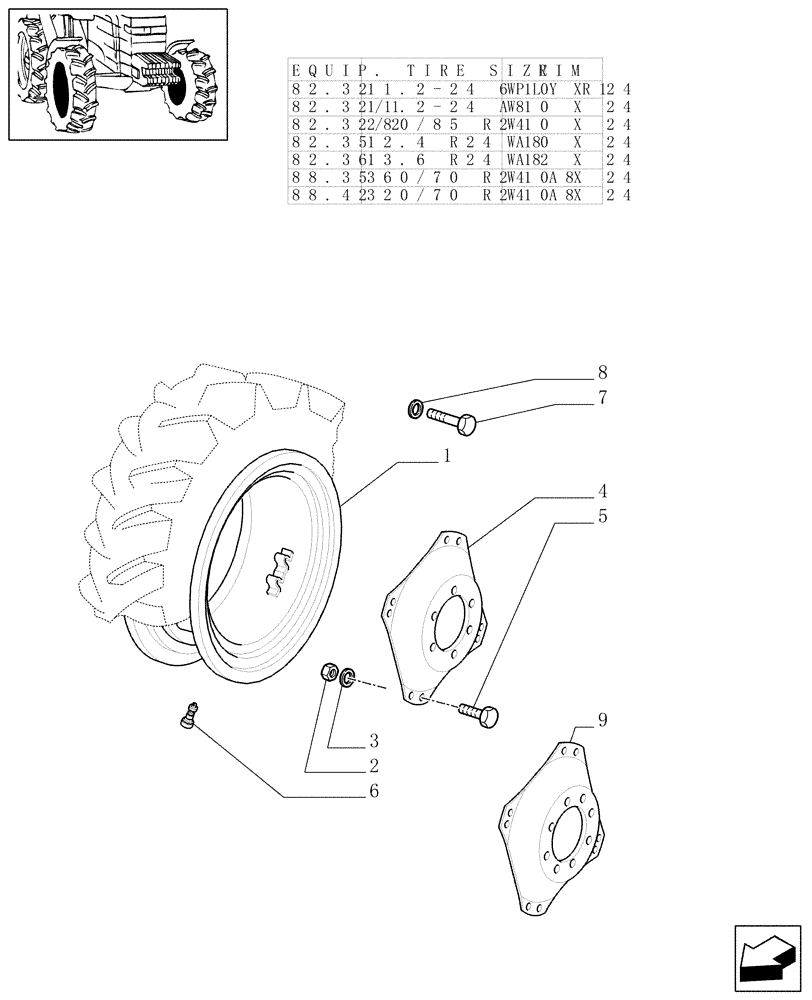

Запчасти Case IH JX80 (82.00[01]) - DRIVING WHEELS - 4WD (11) - WHEELS/TRACKS

1

47128183

RIM,W10 x 24, 8 Bolts, CASE Silver

W10x24

2шт.

1

47128175

RIM,W12 x 24, 8 Bolts, CASE Silver

W12 x 24

2шт.

2

10790524

NUT,M16 x 1.5

16шт.

3

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

16шт.

4

87357858

WHEEL DISC,515mm DIA, 6 Bolts, CASE Silver

JX60, JX70

2шт.

5

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

16шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

1шт.

8

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

1шт.

9

87357860

WHEEL DISC,515mm Dia, 8 Bolts , Case IH Silver

JX80, JX90, JX95

2шт.
