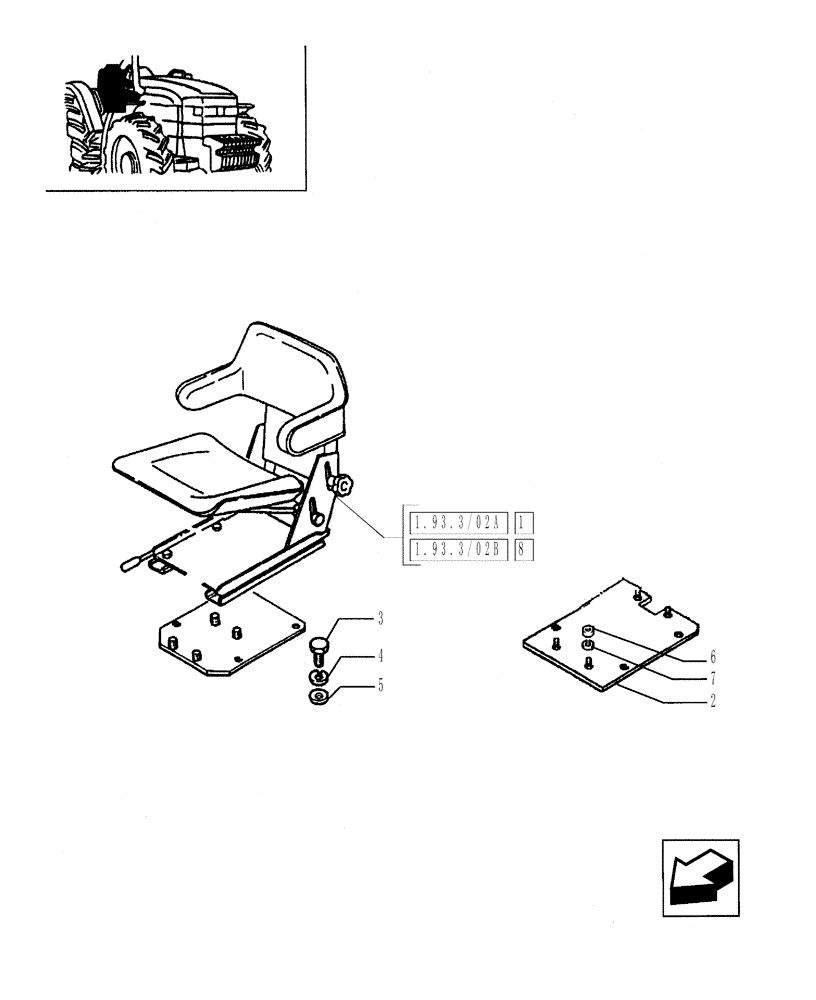

Запчасти Case IH JX80 (1.93.3/02) - (VAR.191) DELUXE VINYL SEAT WITH BELTS, SUPPORT (10) - OPERATORS PLATFORM/CAB

1

5093377

DRIVER SEAT

, Serial Range: -C5662

1шт.

2

5093531

SUPPORT

1шт.

3

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

5

14497501

WASHER

8 x 17 x 1.6

4шт.

6

12164711

NUT,M10 x 1.25, Cl 8

4шт.

7

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

8

87642770

DRIVER SEAT

, Start Serial: D5662

1шт.
