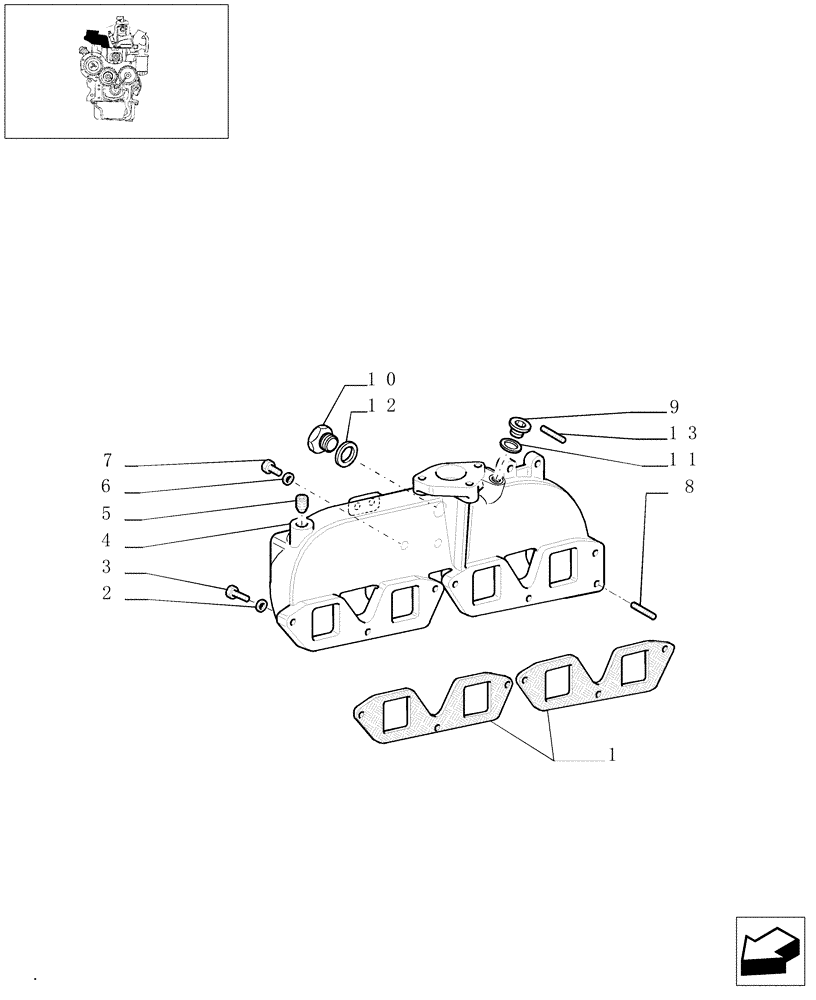

Запчасти Case IH JX80 (0.07.1/02) - INTAKE MANIFOLD (01) - ENGINE

1

4851921

GASKET,0.8mm Thk

2шт.

2

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

4шт.

3

4798845

BOLT,M8 x 1.25 x 16.50mm

M8 x 1.25 x 16.5

1шт.

3

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

4

504047482

INLET MANIFOLD

1шт.

5

14325311

PLUG

M22X1.5

1шт.

6

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

D=10X14X1

1шт.

7

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

8

13543321

STUD

M8 x 16 x 20

1шт.

9

4827588

PLUG

1шт.

9

4724588

PLUG

1шт.

10

44903406

PLUG

1шт.

11

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

1шт.

11

10260060

SEALING WASHER,8.2mm ID x 14mm OD x 1mm Thk

1шт.

12

10279560

SEALING WASHER,22.3mm ID x 28mm OD x 1mm Thk

1шт.

13

13546321

STUD

M10 x 25

2шт.
