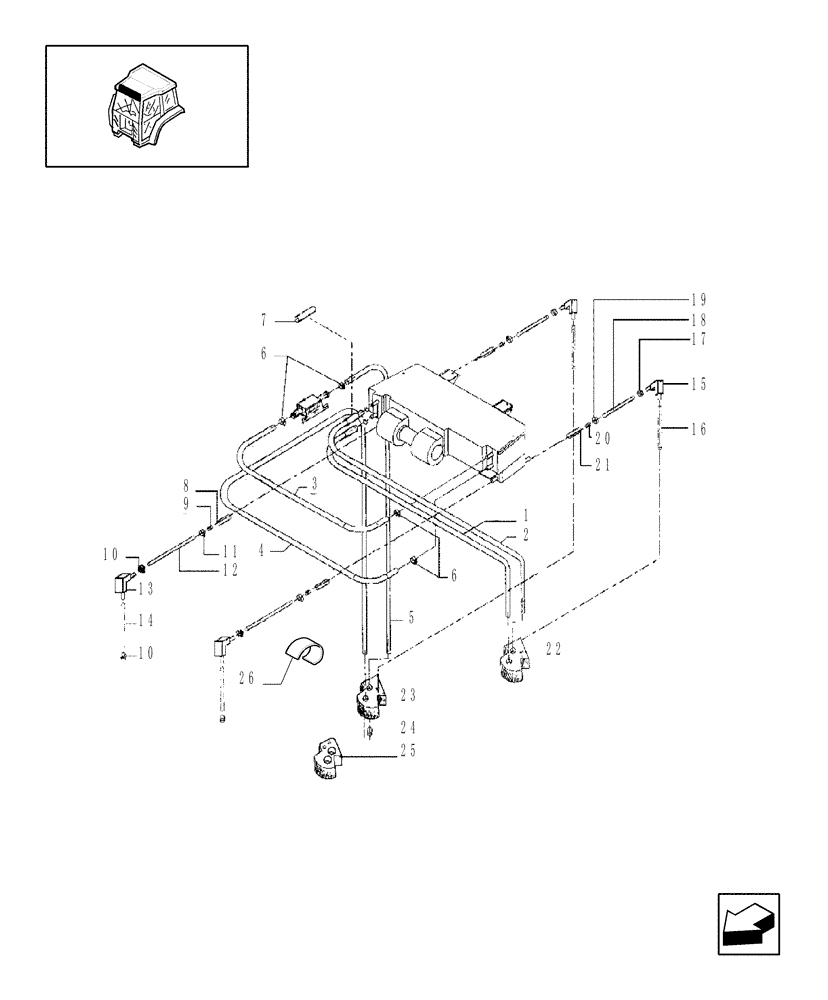

Запчасти Case IH JX80 (1.92.0[70]) - HEATING SYSTEM - PIPES, UNIONS AND INSULATORS (10) - OPERATORS PLATFORM/CAB

1

5091891

A/C HOSE

Hose, Serial Range: Evaporator-Compressor

1шт.

2

5091888

HOSE

& Hose, Serial Range: Dryer-Evaporator

1шт.

3

5097244

HEATER HOSE,16.00 mm ID x 4045.00 mm

Heater

1шт.

JX95 only

1шт.

3

5091897

FLEXIBLE HOSE,16.00 mm ID x 3990.00 mm

Heater to Lower Radiator Hose

1шт.

4

5097243

HOSE,16mm ID x 3195mm L

Heater

1шт.

JX95 only

1шт.

4

5091895

HEATER HOSE,16.00 mm ID x 3230.00 mm

Water Pump to Heater Valve

1шт.

5

5091896

HEATER HOSE,16mm ID x 1080mm L

Heater Valve to Heater

1шт.

6

5085797

CLAMP

5шт.

JX95 only

1шт.

6

5085776

HOSE CLAMP

22 x 36

4шт.

7

5094486

FOAM INSULATION

, Serial Range: -C5384

1шт.

8

83994831

FITTING

2шт.

9

89832204

RIVET

2шт.

10

5094072

GROMMET

2шт.

11

5085797

CLAMP

2шт.

12

5092894

HOSE

1шт.

13

83994807

ELBOW

2шт.

14

83994822

A/C HOSE,829.00 mm

2шт.

15

83994810

ELBOW

2шт.

16

82011448

FLEXIBLE HOSE,6.00 mm ID x 1685.00 mm

A/C Evaporator Drain

2шт.

17

83971477

GROMMET

2шт.

18

5092893

HOSE

1шт.

19

10186590

CLAMP,11mm - 13mm

2шт.

20

89832278

RIVET

2шт.

21

83994832

FITTING

2шт.

22

82001903

FOAM INSULATION

1шт.

23

82001902

FOAM INSULATION

, Serial Range: -C5316

1шт.

24

5094423

HYD CONNECTOR

1шт.

25

5097321

FOAM INSULATION

, Start Serial: D5316

1шт.

26

87574249

INSULATOR

, Start Serial: D5384

2шт.
