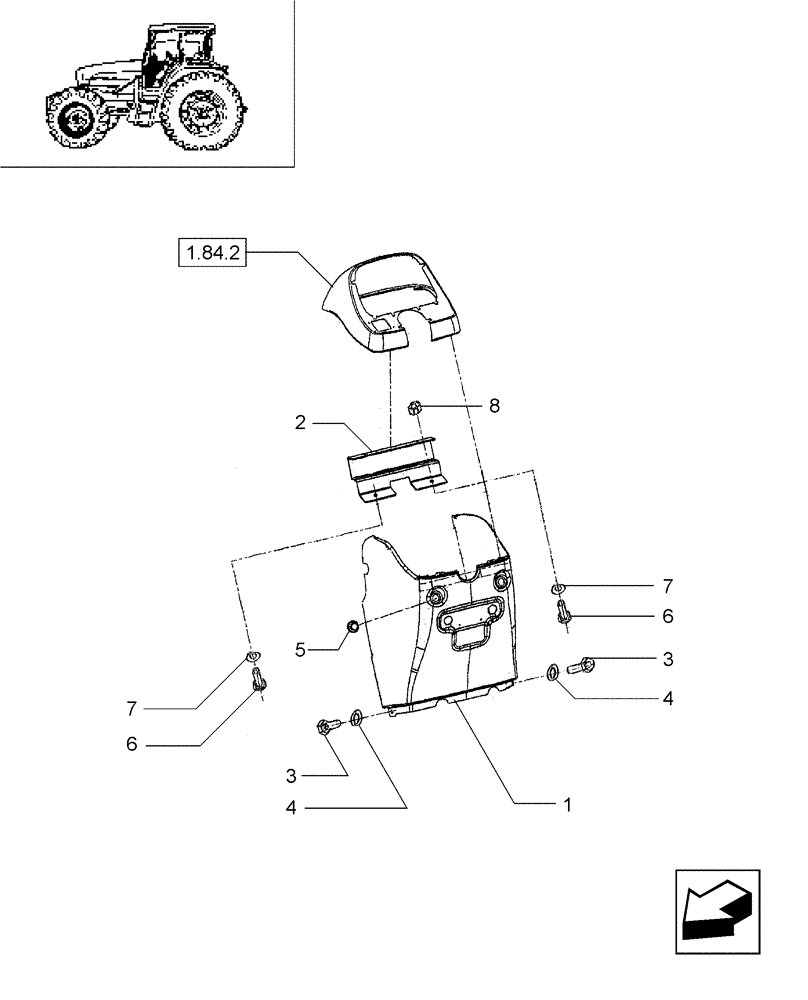

Запчасти Case IH JX80 (1.92.0[36]) - INTERIOR COVERINGS - DASHBOARD COVERING (10) - OPERATORS PLATFORM/CAB

1

5092002

HOOD

Rear

1шт.

2

5090447

BRACKET

1шт.

3

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

4

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

5

5146608

PLUG

1шт.

6

14238130

SCREW,M8

M8 x 27

2шт.

7

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

21шт.

8

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.
