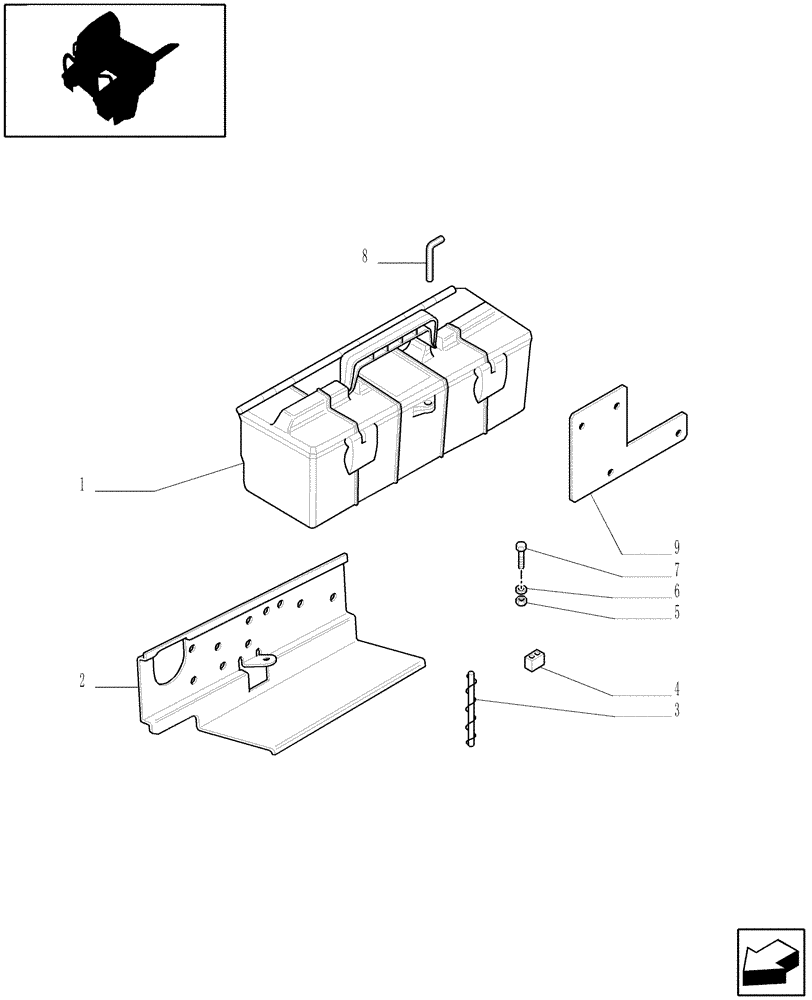

Запчасти Case IH JX80 (1.90.5/01) - SUPPORT AND TOOLBOX - FOR HIGH CLEARANCE VERSION (10) - OPERATORS PLATFORM/CAB

1

5095002

TOOL BOX

1шт.

2

5095986

SUPPORT

1шт.

3

5088746

RETAINING WIRE

WIRE

1шт.

4

747226

FASTENER

1шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

5шт.

6

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

5шт.

7

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

8

5106675

PIN,6mm OD

1шт.

9

5090910

SUPPORT

1шт.
