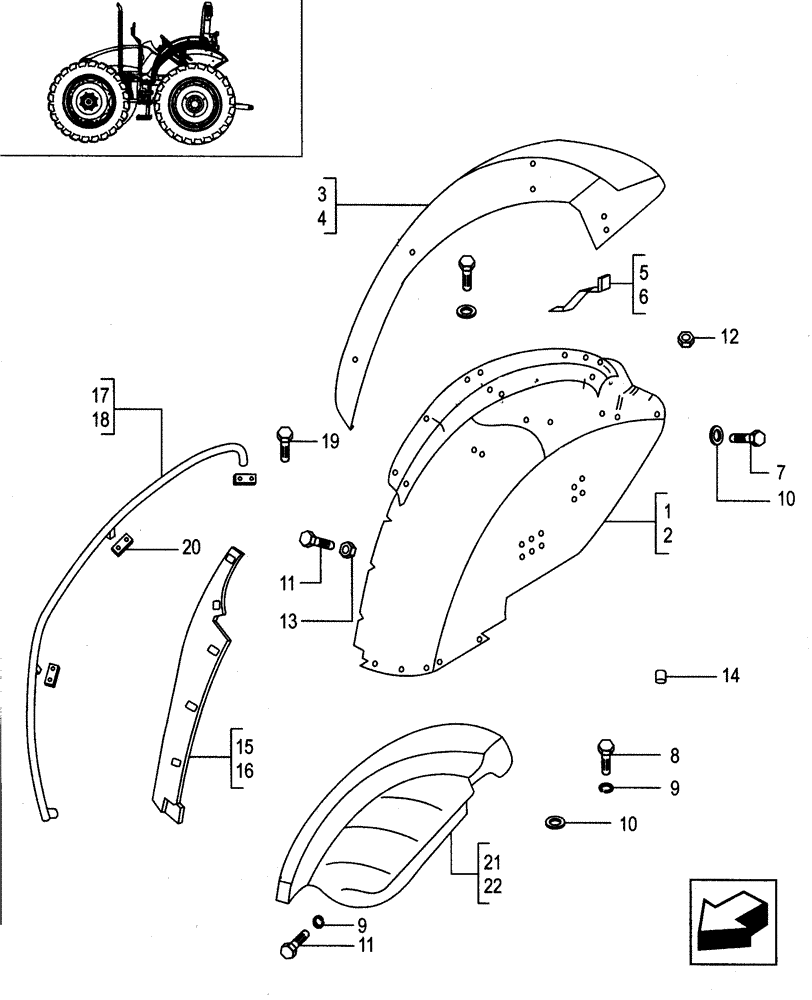

Запчасти Case IH JX80 (1.87.0/02[01]) - MUDGUARDS AND FOOTBOARDS - FOR HIGH CLEARANCE VERSION (08) - SHEET METAL

1

5094687

FENDER

RH

1шт.

2

5094686

FENDER

LH

1шт.

3

5090465

FENDER

Outer RH

1шт.

4

5090466

FENDER

Outer LH

1шт.

5

5090659

SUPPORT

RH

1шт.

6

5090660

SUPPORT

LH

1шт.

7

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

8шт.

8

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

9

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

24шт.

10

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

18шт.

11

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

8шт.

12

14193290

NUT

10шт.

13

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

16шт.

14

5089481

CAP,17mm OD

2шт.

15

5089970

FENDER EXTENSION

RH

1шт.

16

5089971

FENDER EXTENSION

LH

1шт.

17

5089975

HANDRAIL

RH

1шт.

18

5089976

HANDRAIL

LH

1шт.

19

16044821

SCREW,Hex, M8 x 80mm, Cl 8.8

10шт.

20

5092184

SEAL

6шт.

21

5089635

INSTRUCTIONAL SEAT

RH (VAR.687)

1шт.

22

5089636

INSTRUCTIONAL SEAT

LH (VAR.687)

1шт.
