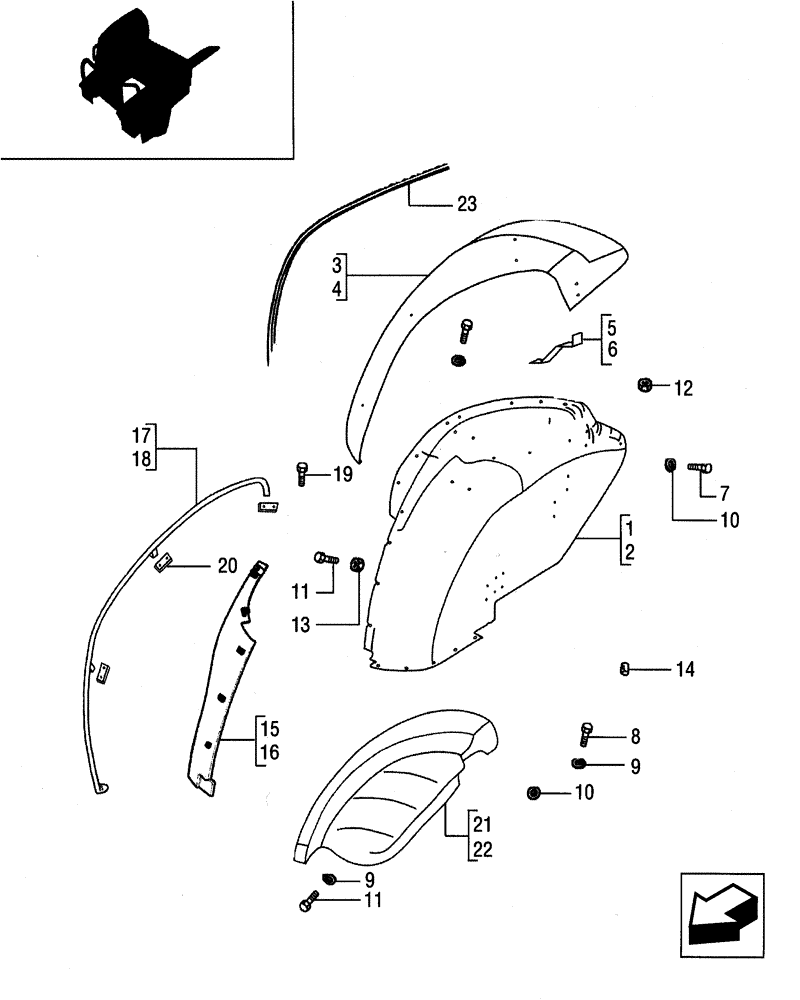

Запчасти Case IH JX80 (1.87.0[01]) - MUDGUARDS AND FOOTBOARDS (08) - SHEET METAL

1

5089525

FENDER

RH

1шт.

2

5089526

FENDER

LH

1шт.

3

5090465

FENDER

Outer RH, JX60-JX70-JX80-JX90

1шт.

3

5093462

FENDER

Outer RH, JX95

1шт.

4

5090466

FENDER

Outer LH, JX60-JX70-JX80-JX90

1шт.

4

5093461

FENDER

Outer LH, JX95

1шт.

5

5090659

SUPPORT

RH

1шт.

6

5090660

SUPPORT

LH

1шт.

7

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

8шт.

8

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

9

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

24шт.

10

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

18шт.

11

5093850

PLUG,9mm OD

D=9

10шт.

12

14193290

NUT

10шт.

13

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

16шт.

14

5089481

CAP,17mm OD

2шт.

15

5089970

FENDER EXTENSION

RH, JX60-JX70-JX80-JX90

1шт.

15

5089972

FENDER EXTENSION

RH, (Var.189/1) JX60-JX70-JX80-JX90

1шт.

15

5093465

FENDER EXTENSION

RH, JX95

1шт.

16

5089971

FENDER EXTENSION

LH, JX60-JX70-JX80-JX90

1шт.

16

5089973

FENDER EXTENSION

LH, (Var.189/1) JX60-JX70-JX80-JX90

1шт.

16

5093467

FENDER EXTENSION

LH, JX95

1шт.

17

5089975

HANDRAIL

RH

1шт.

17

5090411

GRAB STRAP

RH, (Var.189/1 JX60-JX70-JX80-JX90

1шт.

18

5089976

HANDRAIL

LH

1шт.

18

5090413

GRAB STRAP

LH, (Var.189/1) JX60-JX70-JX80-JX90

1шт.

19

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

10шт.

20

5092184

SEAL

6шт.

21

5089635

INSTRUCTIONAL SEAT

RH (VAR.687)

1шт.

22

5089636

INSTRUCTIONAL SEAT

LH (VAR.687)

1шт.

23

5093471

TRIM,2250mm L

JX95

2шт.
