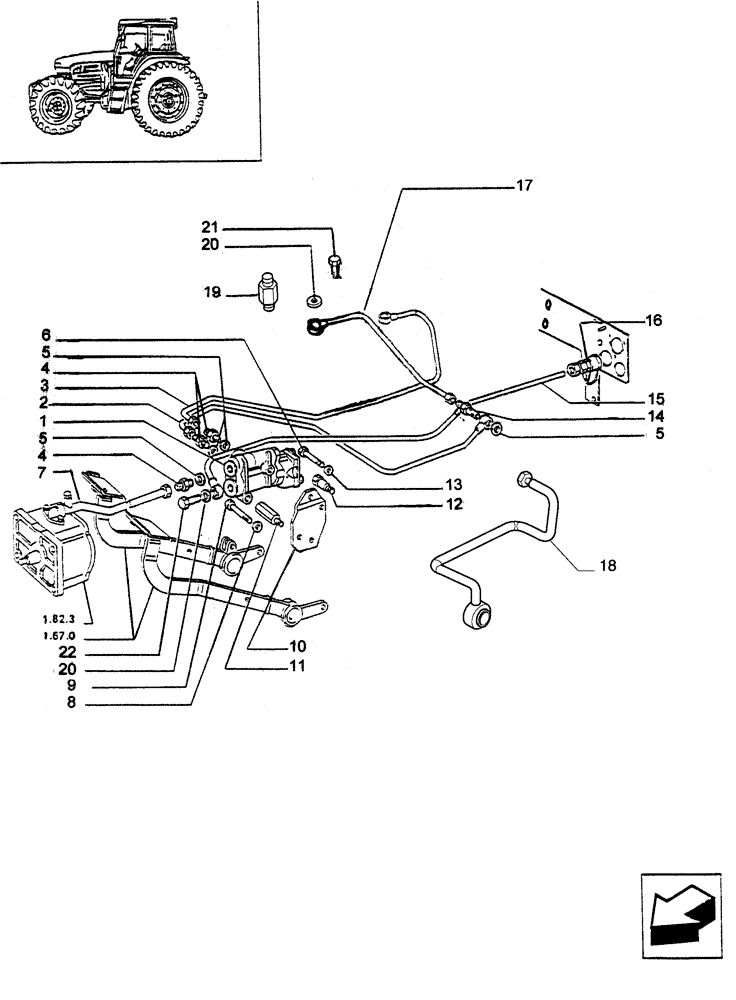

Запчасти Case IH JX80 (1.82.713[01]) - (VAR.152-153-413) TRAILER BRAKE VALVE BREAKDOWN (FRANCE) 1-2-3 CONTROL VALVES - PARTS (07) - HYDRAULIC SYSTEM

1

5122000

HYDRAULIC VALVE

1шт.

2

5095102

BRAKE LINE

1шт.

3

5093767

BRAKE LINE

1шт.

3

5093768

BRAKE LINE

1шт.

3

5093769

TUBE

1шт.

4

5108830

HYD CONNECTOR,M22 x 1.5 x M18 x 1.5

3шт.

5

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

5094384

PIPE

JX60-JX70

1шт.

L= MM.1014

1шт.

7

5094385

PIPE

JX80-JX90

1шт.

L= MM.1129

1шт.

7

5094386

PIPE

JX95

1шт.

L= MM.1192

1шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

9

16044421

SCREW,Hex, M8 x 60mm, Cl 8.8

2шт.

10

5121943

SUPPORT

1шт.

11

5092563

SPACER

MM.72

1шт.

12

5092562

SPACER,M12 x 1.25, 100mm L

MM.100

1шт.

13

11193871

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

14

87640345

HYD CONNECTOR,M22 x 1.5 x M22 x 1.5

1шт.

15

5093776

BRAKE LINE

1шт.

16

44015354

QUICK MALE COUPLING

1шт.

17

5092060

PIPE

1шт.

17

5092061

BRAKE LINE

1шт.

18

5093239

BRAKE LINE

1шт.

19

5092080

SPACER,M18 x 1.5 Male ORFS x M18 x 1.5 Female ORFS

1шт.

19

5121789

REDUCER,M18 x 1.5 M ORB; M18 x 1.5 F ORB

1шт.

20

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

5шт.

21

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

22

5100984

BANJO BOLT,M18 x 1.5, 34mm L

1шт.
