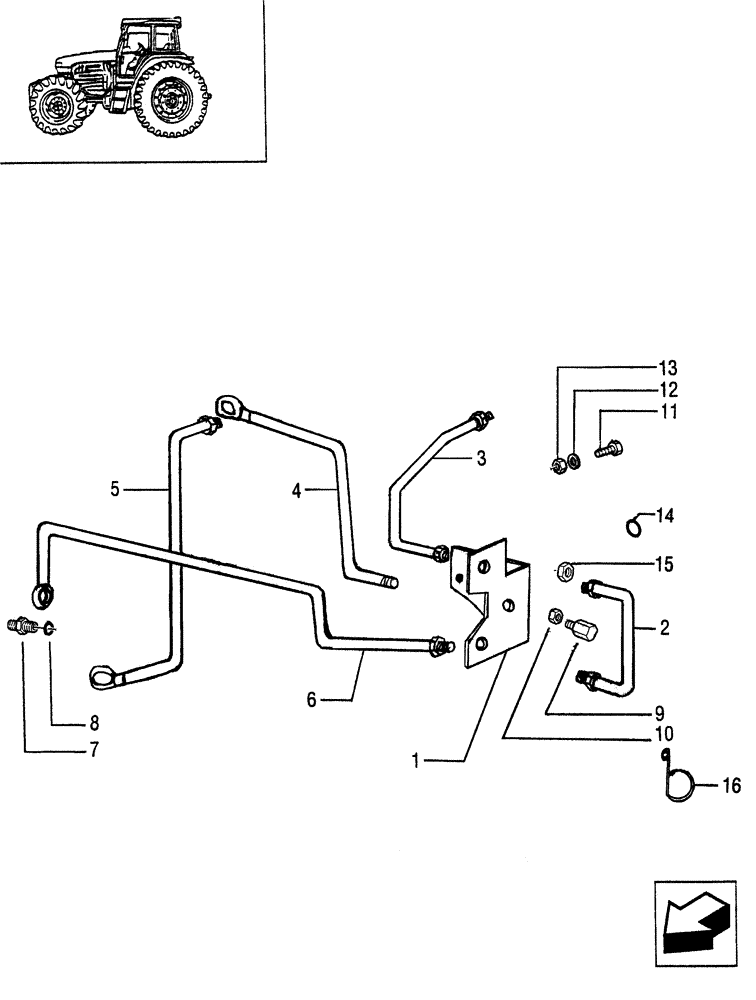

Запчасти Case IH JX80 (1.82.7/05) - (VAR.306) TWO FRONT CONTROL VALVES - PIPES (07) - HYDRAULIC SYSTEM

1

5093775

SUPPORT

1шт.

2

5093770

PIPE

1шт.

3

5093772

PIPE

1шт.

4

5093774

PIPE

1шт.

5

5095102

BRAKE LINE

1шт.

6

5093773

PIPE

1шт.

7

87640345

HYD CONNECTOR,M22 x 1.5 x M22 x 1.5

1шт.

8

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

9

5121789

REDUCER,M18 x 1.5 M ORB; M18 x 1.5 F ORB

1шт.

10

5092959

NUT

Cap

1шт.

11

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

12

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

13

16100821

NUT,M8, Cl 10

1шт.

14

14453380

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

3шт.

15

5092958

BHD LOCK NUT,1" 1/4 UNF

6шт.

16

5092988

CLIP

1шт.
