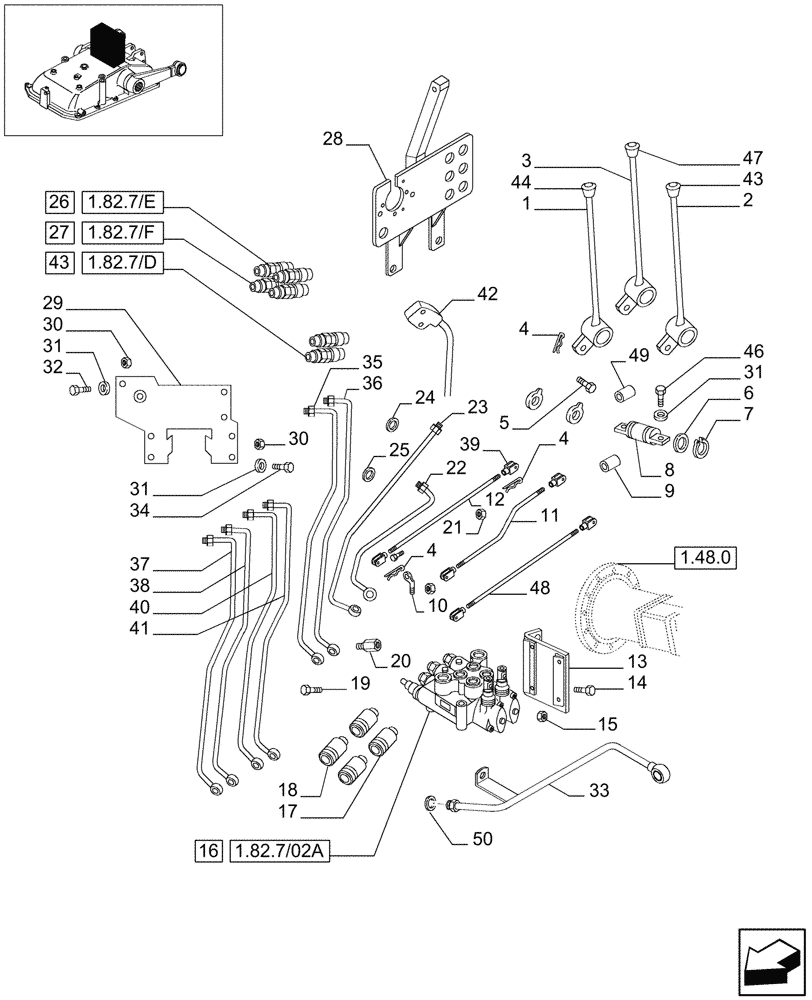

Запчасти Case IH JX80 (1.82.7/02) - (VAR.368) 2 CONTROL VALVES (1 S/D + 1 DOUBLE ACTING) (07) - HYDRAULIC SYSTEM

1

5093963

LEVER

1шт.

2

5093964

LEVER

1шт.

3

5093965

LEVER

1шт.

4

10734401

COTTER PIN,M2 x 22

4шт.

5

5089126

PIN,12mm OD x 89mm L

4шт.

6

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

D = 35 x 21 x 2

4шт.

7

11066976

SNAP RING,M21, Ext

2шт.

8

5133375

PIN,20mm OD x 100mm L

1шт.

9

5091106

BUSHING,27mm ID x 38mm OD x 14mm L

1шт.

10

5089075

EYEBOLT,M8

2шт.

11

5093831

ROD

1шт.

12

5093830

ROD

1шт.

13

5092077

SUPPORT

1шт.

14

15919401

SCREW,Pozidriv Flat Hd Csk, M6.3 x 16mm

14 x 16

4шт.

15

15896211

NUT,M6, Cl 8

4шт.

16

5094668

HYDRAULIC VALVE

1шт.

17

5092080

SPACER,M18 x 1.5 Male ORFS x M18 x 1.5 Female ORFS

2шт.

18

5092079

SPACER,M18 x 1.5 NPT x M18 x 1.5

2шт.

19

5100984

BANJO BOLT,M18 x 1.5, 34mm L

7шт.

20

5087002

HYD CONNECTOR

1шт.

21

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

22

5095103

PIPE

1шт.

23

5092061

BRAKE LINE

1шт.

24

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

18X24X1,5

18шт.

25

10264560

SEAL,24mm ID x 32mm OD x 1.5mm Thk

1шт.

26

5092198

COUPLING, QUICK, FEM,Light Blue

Light Blue

2шт.

27

5091860

COUPLING, QUICK, FEM,Green

Green

2шт.

28

5092601

SUPPORT

Quick Coupling

1шт.

29

5091912

SUPPORT

1шт.

30

5129168

BHD LOCK NUT,M24 x 1.5

4шт.

31

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

5шт.

32

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

33

5092043

PIPE

JX95

1шт.

33

5092045

TUBE

1шт.

34

16044421

SCREW,Hex, M8 x 60mm, Cl 8.8

2шт.

35

5094324

TUBE

Quick Coupling, Fourth, 364.5mm L

1шт.

36

5094320

TUBE

Quick Coupling, Third, 419mm L

1шт.

37

5092067

TUBE

Quick Coupling, Second, 415mm L

1шт.

38

5092065

TUBE

Quick Coupling, First, 449mm L

1шт.

39

5089026

SUPPORT

2шт.

40

5096140

TUBE

Quick Coupling, Fifth, 431mm L, JX95

1шт.

41

5096142

PIPE

Quick Coupling, Sixth, 311.5mm L, JX95

1шт.

42

5128343

RIGID TUBE

1шт.

43

5092199

COUPLING, QUICK, FEM,Brown

Brown

2шт.

44

5091856

KNOB

Green

1шт.

45

5091857

KNOB

Blue

1шт.

46

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

47

5092203

KNOB

Brown, JX95

1шт.

48

5093832

ROD

JX95

1шт.

49

5090174

GUIDE BUSHING,27mm ID x 38mm OD x 14mm L

2шт.

50

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.
