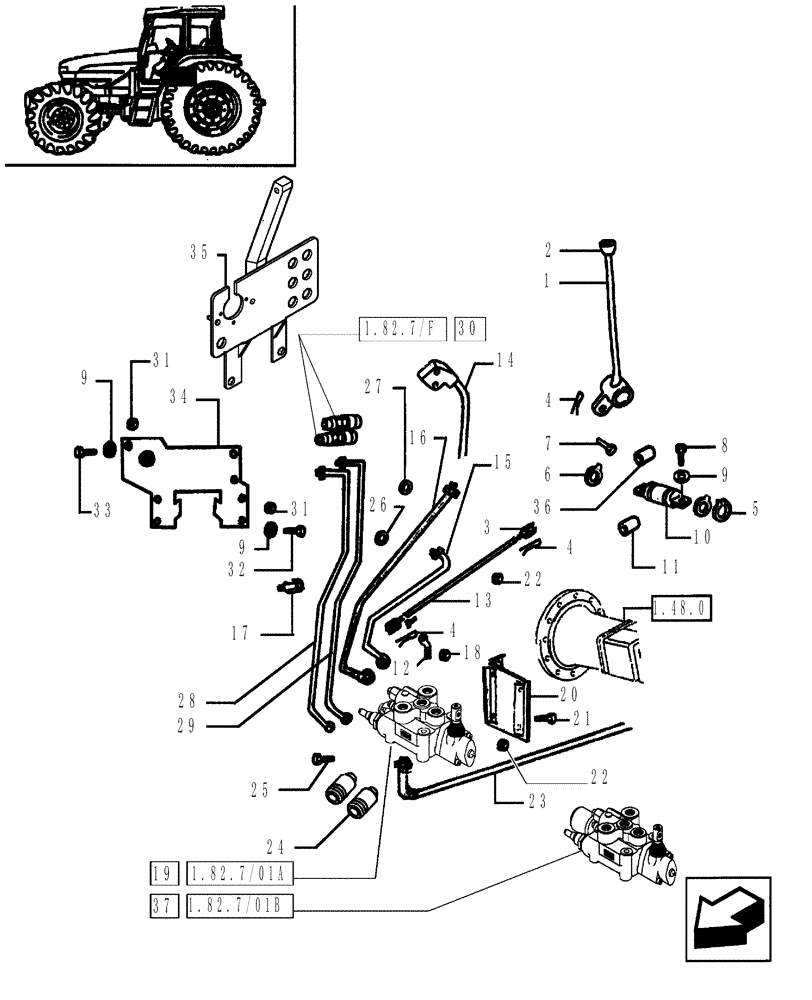

Запчасти Case IH JX80 (1.82.7/01) - (VAR.366-412) 1 CONTROL VALVE (07) - HYDRAULIC SYSTEM

1

5093963

LEVER

1шт.

2

5091856

KNOB

Green

1шт.

3

5089026

SUPPORT

2шт.

4

10734401

COTTER PIN,M2 x 22

2шт.

5

11066976

SNAP RING,M21, Ext

2шт.

6

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

D = 35 x 21 x 2

4шт.

7

5089126

PIN,12mm OD x 89mm L

2шт.

8

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

9

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

5шт.

10

5133375

PIN,20mm OD x 100mm L

1шт.

11

5091106

BUSHING,27mm ID x 38mm OD x 14mm L

3шт.

12

5089075

EYEBOLT,M8

1шт.

13

5093830

ROD

1шт.

14

5128343

RIGID TUBE

1шт.

15

5095103

PIPE

1шт.

16

5092061

BRAKE LINE

1шт.

17

5087002

HYD CONNECTOR

1шт.

18

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

19

5091240

HYDRAULIC VALVE

1 Spool, VAR.366

1шт.

S/D

1шт.

20

5092076

SUPPORT

1шт.

21

15919401

SCREW,Pozidriv Flat Hd Csk, M6.3 x 16mm

14 x 16

2шт.

22

15896211

NUT,M6, Cl 8

2шт.

23

5092047

TUBE

1шт.

24

5092080

SPACER,M18 x 1.5 Male ORFS x M18 x 1.5 Female ORFS

2шт.

25

5100984

BANJO BOLT,M18 x 1.5, 34mm L

5шт.

26

10264560

SEAL,24mm ID x 32mm OD x 1.5mm Thk

1шт.

27

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

24X32X1,518

12шт.

28

5092065

TUBE

Quick Coupling, First, 449mm L

1шт.

29

5092067

TUBE

Quick Coupling, Second, 415mm L

1шт.

30

5091860

COUPLING, QUICK, FEM,Green

Green

2шт.

31

5129168

BHD LOCK NUT,M24 x 1.5

2шт.

32

16044421

SCREW,Hex, M8 x 60mm, Cl 8.8

2шт.

33

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

34

5091912

SUPPORT

1шт.

35

5092601

SUPPORT

Quick Coupling

1шт.

36

5090174

GUIDE BUSHING,27mm ID x 38mm OD x 14mm L

2шт.

37

5095109

HYD VALVE SECTION

VAR.412

1шт.

S/D W/Kick Out

1шт.
