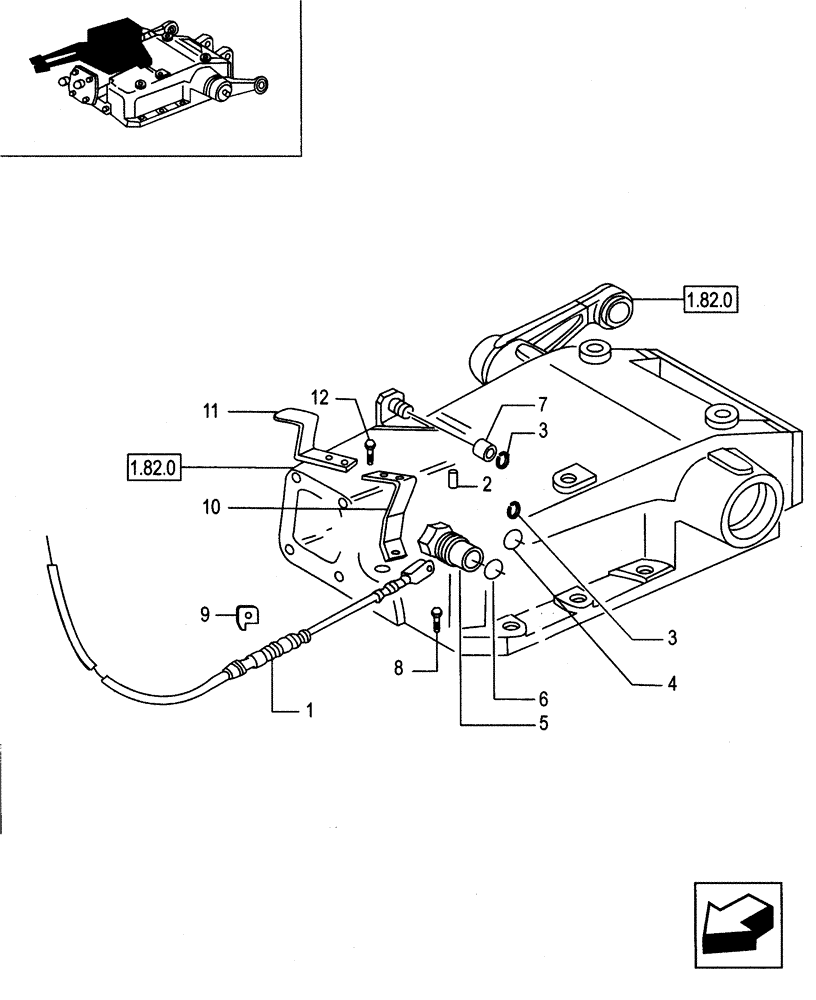

Запчасти Case IH JX80 (1.82.5/02[02]) - LIFT CONTROLS - FOR HIGH CLEARANCE VERSION (07) - HYDRAULIC SYSTEM

1

5095046

CABLE

, Serial Range: -C5186

1шт.

1

5096996

CABLE,690mm L

, Start Serial: D5186

1шт.

2

13938070

ROLL PIN,M4 x 24mm OAL, Coiled

1шт.

3

11065676

SNAP RING,M8, Ext

1шт.

4

5135732

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

5

5129399

PLUG,M22 x 1.5

1шт.

6

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

7

5111028

ROLLER,18mm OD x 10mm L

1шт.

8

5090281

PIN

1шт.

9

5090284

SUPPORT

1шт.

10

5094474

LEVER

, Serial Range: -C5186

1шт.

10

5097090

BRACKET

, Start Serial: D5186

1шт.

11

5089954

LEVER

1шт.

12

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.
