Запчасти Case IH JX80 (1.82.4/ A) - CONTROL VALVE AND LIFT VALVES - PARTS COMPONENTS (07) - HYDRAULIC SYSTEM

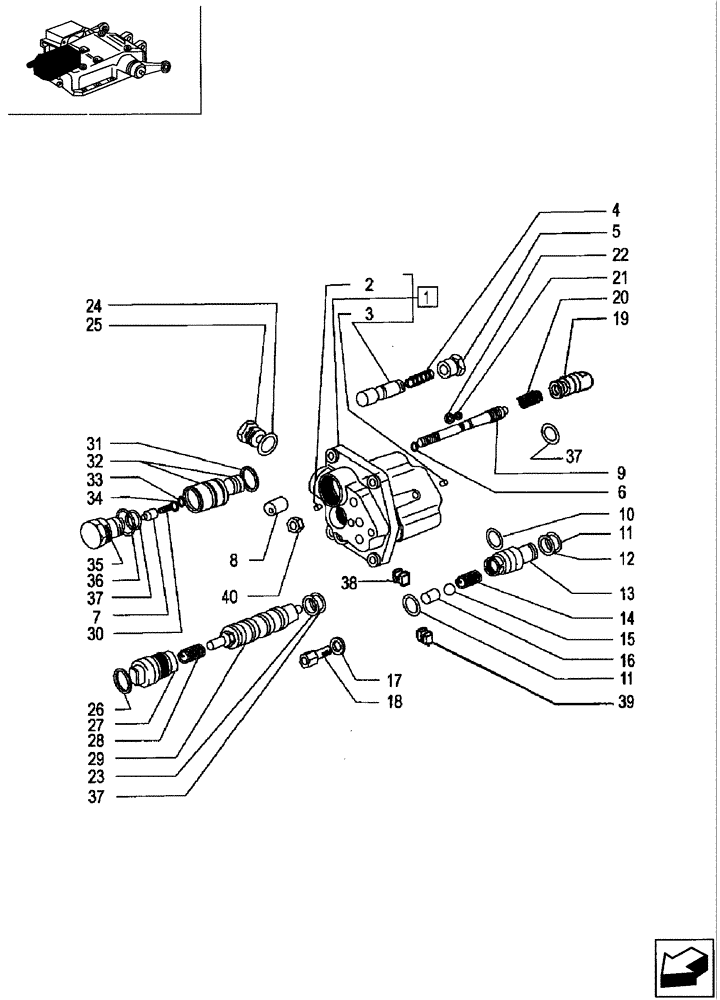

Схема запчастей Case IH JX80 - (1.82.4/ A) - CONTROL VALVE AND LIFT VALVES - PARTS COMPONENTS (07) - HYDRAULIC SYSTEM
8
14
11
6
34
21
15
33
4
7
26
18
3
28
25
30
27
37
31
32
17
35
40
20
29
39
5
37
37
23
10
1
16
11
22
13
12
24
36
38
9
19
2

Артикул

Название

Примечание

Количество

1

5170596

BODY

1шт.

including spool, (spool NSS)

1шт.

2

10269150

PLUG,M6 x 1 x 60mm L

8

3шт.

3

5162458

PLUG,M10 x 1.25

M8x30

2шт.

4

5117729

SPRING,Compression, 11mm OD x 44mm L

1шт.

5

5117734

PLUG,M20 x 1.5

1шт.

6

13397476

SNAP RING,M10.8, Int

1шт.

7

5117732

PIN,10.5mm OD x 15.5mm L

1шт.

8

5170590

SPACER,12mm ID x 17mm OD x 12mm L

1шт.

9

5170591

PIN,16mm OD x 72mm L

1шт.

10

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

11

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

12

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

1шт.

13

5156291

HYD CONNECTOR,M24 x 1.5

1шт.

14

5156289

SPRING,Compression, 8.5mm OD x 25.5mm L

DO=8,5 DW=1,2 L=25,5

1шт.

15

20063580

BALL,13.49mm OD, Gr 100

1шт.

16

5156290

VALVE SEAT,20mm OD x 12mm Thk

1шт.

17

10296160

SEALING WASHER,M12.2 x 18 x 1, Copper

1шт.

18

14360524

HEX SOC SCREW,M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

19

5178017

SPOOL,16.5mm OD x 30.5mm L

1шт.

20

5155844

SPRING,Compression, 11mm OD x 34mm L

DO=11 DW=1,6 L=34

1шт.

21

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

M6.75 ID x 1.78 Thk

1шт.

22

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

23

5117726

WASHER,17.83mm ID x 22.19mm OD x 1.14mm Thk

2шт.

24

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

25

10275014

PLUG,Hex, M22 x 1.5, Cl 5.8

1шт.

26

14453980

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

27

5117725

PLUG,M27 x 1.5

1шт.

28

4973361

SPRING,Compression, 15.5mm OD x 50.5mm L

DO=15,5 DW=1,5 L=50,5

1шт.

29

5163230

HYDRAULIC VALVE

1шт.

30

5115469

SPRING,Compression, 7.7mm OD x 14.5mm L

DO=7,7 DW=0,9 L=14,5

1шт.

31

14454081

O-RING,1.051" ID x 0.07" Width

1шт.

32

5117731

SPOOL

1шт.

33

13420376

SNAP RING,M12, Int

1шт.

34

5122030

SPRING WASHER,5mm ID x 11.7mm OD x 3mm Thk

1шт.

35

5122029

PLUG,M32 x 1.5

1шт.

36

14458081

O-RING,1.112" ID x 0.103" Width

1шт.

37

14457381

O-RING,17.12mm ID x 2.62" Width

5шт.

38

5148907

SPACER,3mm Thk

UPPER

1шт.

39

5148905

SPACER,3mm Thk

LOWER

1шт.

40

16100814

NUT,M8, Cl 8, DAC

1шт.

Выбрано товаров: 41
