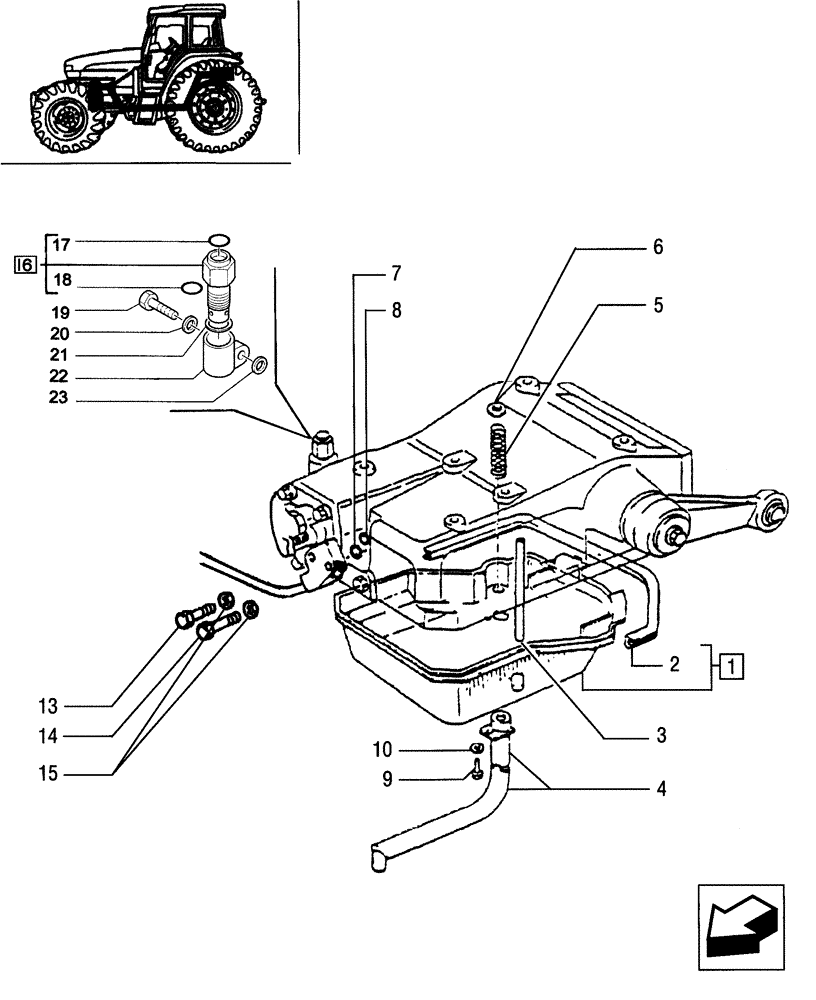

Запчасти Case IH JX80 (1.82.1[02]) - LIFT PIPES - PIPES AND GASKETS (07) - HYDRAULIC SYSTEM

1

5165978

PAN

1шт.

2

5122962

OIL SEAL

1шт.

3

5122987

TUBE,8mm ID x 10mm OD x 127mm L

1шт.

4

5121804

RIGID TUBE

1шт.

5

559958

SPRING,Compression, 15.5mm OD x 46mm L

1шт.

6

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

1шт.

7

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

3шт.

8

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3шт.

9

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

10

10571579

LOCK WASHER,M6

3шт.

11

15540021

BOLT,Hex, M12 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

12

10571979

LOCK WASHER,M12

2шт.

13

14307421

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8

1шт.

14

14308221

HEX SOC SCREW,M10 x 1.25 x 65mm, Cl 8.8

1шт.

15

10569479

LOCK WASHER,10.2mm ID x 16mm OD x 2.5mm Thk

10

1шт.

16

5011763

VALVE PRESSURE RELIE

1шт.

17

14457381

O-RING,17.12mm ID x 2.62" Width

1шт.

18

14453981

O-RING,0.989" ID x 0.07" Width

1шт.

19

5120450

BANJO BOLT

1шт.

20

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

21

10263360

SEAL,20.3mm ID x 26mm OD x 1mm Thk

1шт.

22

5120449

BODY

1шт.

23

10264560

SEAL,24mm ID x 32mm OD x 1.5mm Thk

1шт.
