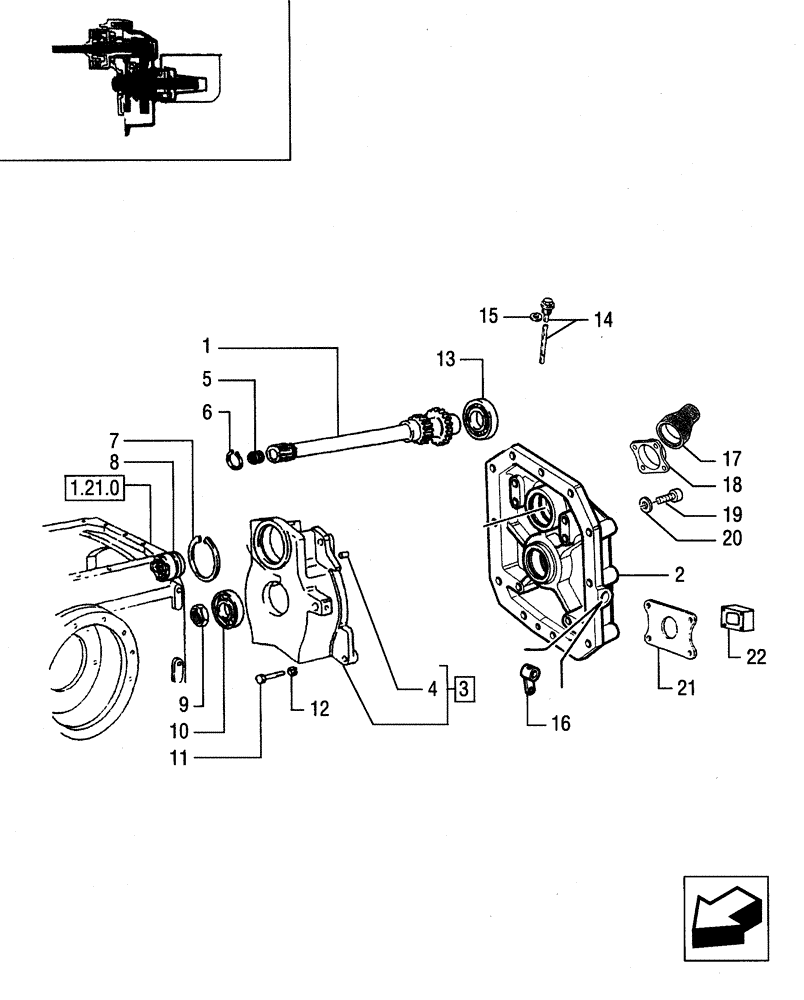

Запчасти Case IH JX80 (1.80.1/04[01]) - (VAR.959) 540-1000 RPM POWER TAKE OFF - SHAFT AND COVER (07) - HYDRAULIC SYSTEM

1

87304430

SHAFT

(540/1000)

1шт.

2

5118325

COVER

1шт.

3

5093103

SUPPORT

1шт.

4

10839710

DOWEL,M10 x 15.00mm

2шт.

5

5103238

NEEDLE BEARING,15mm ID x 21mm OD x 16mm W

1шт.

6

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

7

11062476

SNAP RING,M90, Int

1шт.

8

5167983

SPLINED COUPLING,12T

1шт.

9

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

10

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

1шт.

11

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

12

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

13

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23 mm

3шт.

14

47134050

DIPSTICK

1шт.

15

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

16

5122797

THRUST WASHER,35mm ID x 62mm OD x 6mm Thk

1шт.

17

5171520

SHIELD,132mm L

1шт.

18

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

19

16044221

SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

20

10569379

LOCK WASHER

M8

4шт.

21

5093104

SEAL

1шт.

22

5093107

SPACER

1шт.
