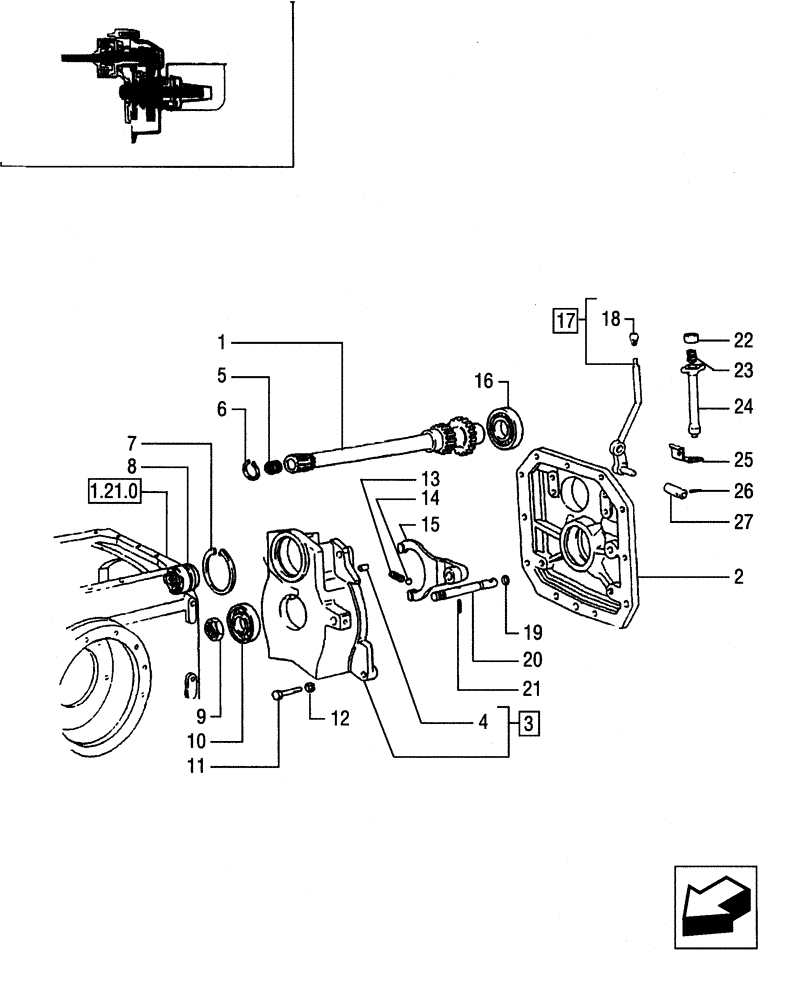

Запчасти Case IH JX80 (1.80.1[04]) - POWER TAKE-OFF - SHAFT, COVER, LEVER AND GUARD (07) - HYDRAULIC SYSTEM

1

87304430

SHAFT

(540/1000)

1шт.

2

5118325

COVER

1шт.

3

5109749

SUPPORT

1шт.

4

10839710

DOWEL,M10 x 15.00mm

2шт.

5

5103238

NEEDLE BEARING,15mm ID x 21mm OD x 16mm W

1шт.

6

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

7

11062476

SNAP RING,M90, Int

1шт.

8

5167983

SPLINED COUPLING,12T

1шт.

9

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

10

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

1шт.

11

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

12

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

13

4994342

SPRING,8mm OD x 30mm OAL

1шт.

14

20063390

BALL,8.73mm OD

1шт.

15

5162065

SHIFTER FORK

1шт.

16

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23 mm

3шт.

17

5153680

LEVER

1шт.

18

4982837

KNOB

1шт.

19

14457081

O-RING,12.37mm ID x 2.62mm

1шт.

20

5113412

PIN,12mm OD x 156mm L

1шт.

21

13907770

ROLL PIN,M5 x 32, Coiled

1шт.

22

5153685

CUP

1шт.

23

4952341

SPRING

1шт.

24

5153682

ROD

1шт.

25

5153681

BRACKET

1шт.

26

81827571

COTTER PIN

1шт.

27

5117036

PIN,10mm OD x 34mm L

1шт.
