Запчасти Case IH JX80 (1.80.1[01]) - POWER TAKE-OFF - SHAFT, COVER AND GUARD (07) - HYDRAULIC SYSTEM

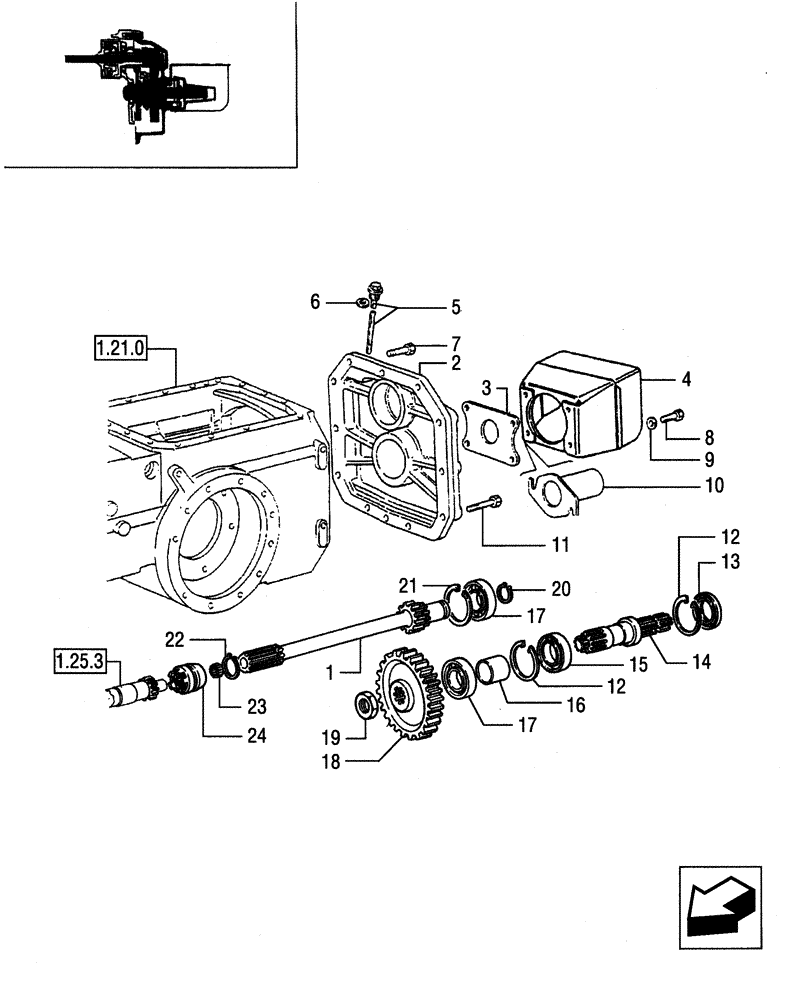

Схема запчастей Case IH JX80 - (1.80.1[01]) - POWER TAKE-OFF - SHAFT, COVER AND GUARD (07) - HYDRAULIC SYSTEM
6
8
12
3
16
23
17
14
9
13
1.21.0
11
12
1.25.3
5
20
22
18
1
19
15
7
10
24
2
21
17
4

Артикул

Название

Примечание

Количество

1

5109724

SHAFT

JX70, JX95

1шт.

2

5118325

COVER

1шт.

2

5164003

COVER

JX70, JX95

1шт.

3

5104039

GUARD

JX70, JX95

1шт.

4

5089614

SHIELD

1шт.

5

47134050

DIPSTICK

1шт.

6

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

7

11391521

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

4шт.

8

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

9

10516674

LOCK WASHER,M8

4шт.

10

5102349

GUARD

1шт.

11

15981321

BOLT,Hex, M16 x 1.5 x 75mm, Cl 8.8

6шт.

12

11061976

SNAP RING,M80, Int

2шт.

13

5111518

SEAL,50mm ID x 80mm OD x 10mm Thk

JX70, JX95

1шт.

14

5109726

SHAFT

JX70, JX95

1шт.

15

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

JX70, JX95

1шт.

16

5109727

SPACER,40.1mm ID x 50mm OD x 43mm L

JX70, JX95

1шт.

17

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23 mm

2шт.

18

5109725

DRIVEN GEAR

JX70, JX95

1шт.

19

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

20

11068876

SNAP RING,M40, Ext

1шт.

21

11062476

SNAP RING,M90, Int

1шт.

22

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

23

5103238

NEEDLE BEARING,15mm ID x 21mm OD x 16mm W

1шт.

24

5109812

SLEEVE

1шт.

Выбрано товаров: 25
