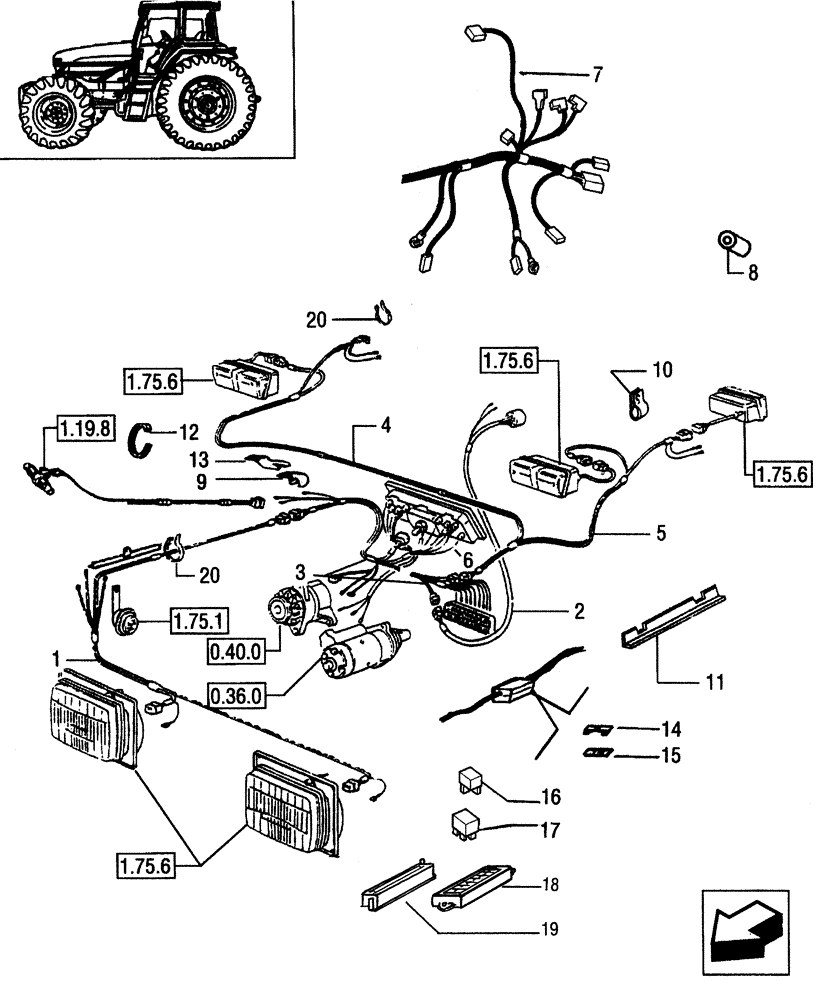

Запчасти Case IH JX80 (1.75.4) - VARIOUS WIRES (06) - ELECTRICAL SYSTEMS

1

5092140

WIRE HARNESS

Head Lamp

1шт.

1

5096456

WIRE HARNESS

Head Lamp

1шт.

Used from HFJ033096 to HFJ041876 W/Cab and from HFJ033003 to HFJ041222 L/Cab.

1шт.

2

5089472

WIRE HARNESS

Chassis/Transmission, Serial Range: -HFD014578

1шт.

2

5094338

WIRE HARNESS

Chassis/Transmission

1шт.

3

5094766

WIRE HARNESS

W/Fusebox W/Cab

1шт.

3

5096444

WIRE HARNESS

Main, W/Cab, Serial Range: HFJ033096-HFJ041876

1шт.

3

5094767

WIRE HARNESS

W/Fusebox L/Cab

1шт.

3

5096445

WIRE HARNESS

Main, L/Cab, Serial Range: HFJ033003-HFJ041222

1шт.

4

5089474

WIRE HARNESS

RH Fender

1шт.

5

5089475

WIRE HARNESS

LH Fender

1шт.

6

5093605

WIRE HARNESS

Instruments, W/Cab

1шт.

6

5093607

WIRE HARNESS

Instruments, L/Cab

1шт.

7

5094100

WIRE HARNESS

Cab Interior

1шт.

8

5093911

GROMMET

1шт.

9

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

1-14

1шт.

10

5088304

CLAMP

4шт.

11

5093288

COVER

2шт.

12

5093416

CLIP

2шт.

13

5121360

LOCKING PLATE

1шт.

14

5080122

FUSE,40A, Strip

40 Amp

1шт.

15

5080123

FUSE

80 Amp

1шт.

16

5080366

RELAY,12V, 30A

3шт.

17

5080380

RELAY,12V, 30A

1шт.

18

5080367

FUSE BOX

2шт.

19

5080368

COVER

2шт.

20

5112712

COLLAR,M4.8 x 283

10шт.
