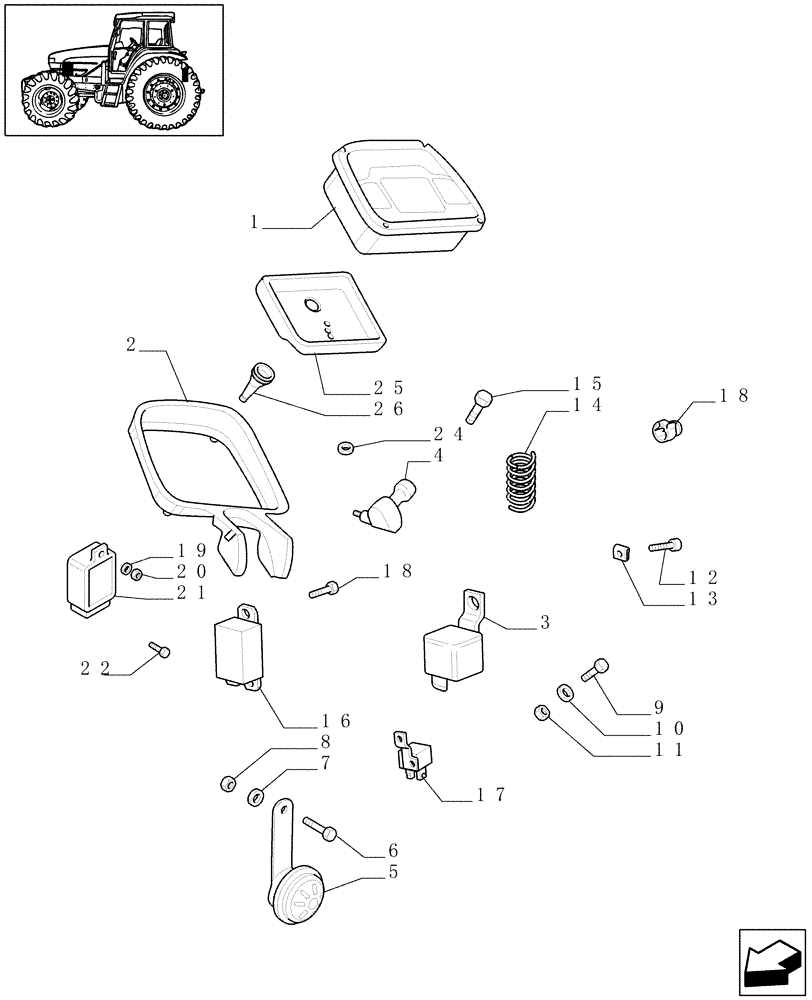

Запчасти Case IH JX80 (1.75.1[01]) - CONTROL DEVICES (06) - ELECTRICAL SYSTEMS

1

5096046

INSTRUMENT CLUSTER

1шт.

2

5089537

BEZEL

1шт.

3

5086059

RELAY

JX60, JX70

1шт.

4

5086145

ADAPTER

1шт.

5

5087129

HORN

1шт.

6

16042921

BOLT,Hex, M8 x 10mm, Cl 8.8, Full Thd

1шт.

7

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

8

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

9

10390211

SCREW,Sl Pan Hd, M5 x 35mm, Cl 5.8

3шт.

10

10571479

LOCK WASHER,M5

3шт.

11

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

3шт.

12

15693501

SCREW,Cross Oval Hd, M4.8 x 22

6шт.

13

12644401

WASHER,6.15mm ID x 15mm OD x 1mm Thk

6шт.

14

5089761

SPRING

6шт.

15

15958107

SCREW,Pan Hd, M4 x 25

4шт.

16

5086055

RELAY,12V

1шт.

17

5086057

DIODE

PROTECTION DEVI.

1шт.

18

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

19

10571579

LOCK WASHER,M6

1шт.

20

15896211

NUT,M6, Cl 8

1шт.

21

5188605

BUZZER,12V, 0.7A

Time-Delay

1шт.

22

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.

23

5086173

ELEC CONNECTOR

Plug

1шт.

24

5094197

WASHER,10.5mm ID x 18mm OD x 2mm Thk

2шт.

25

84286370

COVER

1шт.

26

84286371

BOOT

1шт.
