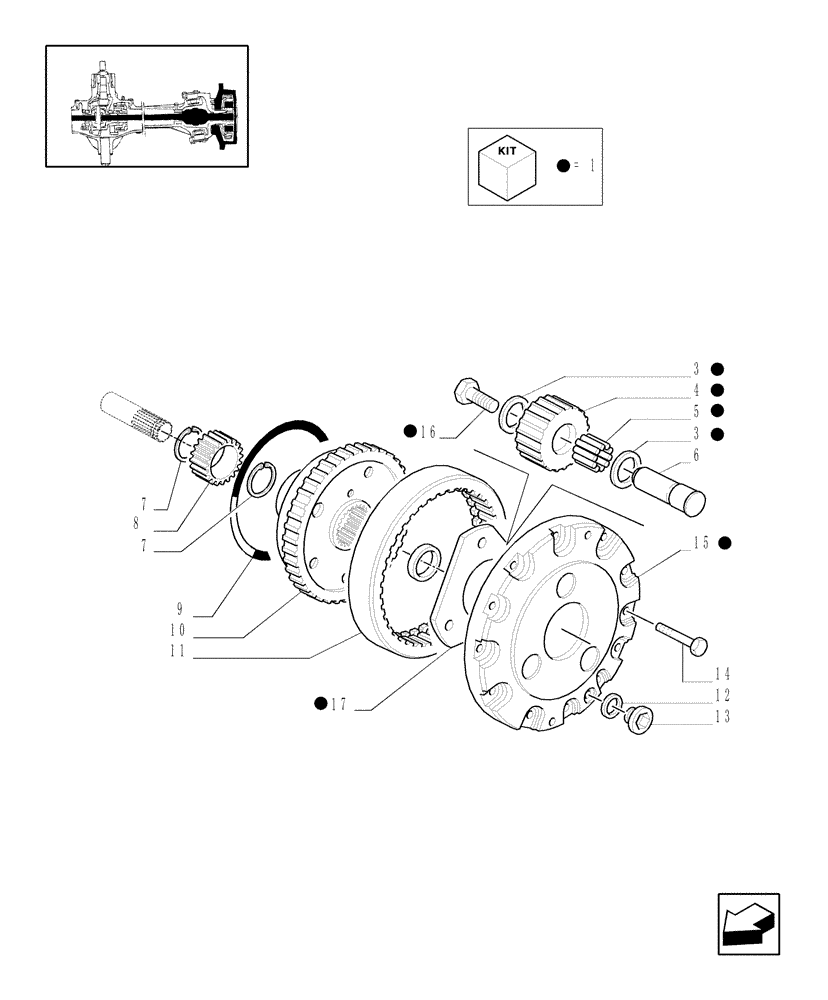

Запчасти Case IH JX80 (1.40.0/10[04A]) - FRONT AXLE - PLANETARY GEAR SUPPORT , BEARING AND DISKS - D4998 (04) - FRONT AXLE & STEERING

1

87303291

CARRIER

2шт.

2

5142979

BUSHING

2шт.

3

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

6шт.

4

87303252

PLANETARY GEAR

3шт.

5

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

3шт.

6

5181053

PIN,29.98mm OD x 66.5mm L

6шт.

7

5140018

SNAP RING,M30, Ext

4шт.

8

5137107

SUN GEAR

2шт.

9

4997571

CIRCLIP

2шт.

10

5142047

PLANET CARRIER

2шт.

11

5108749

RING GEAR

2шт.

12

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

13

10305171

PLUG,M22 x 1.5 x 21

2шт.

14

14233621

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

24шт.

15

87312520

SUPPORT

2шт.

16

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

17

47137794

RING

2шт.
