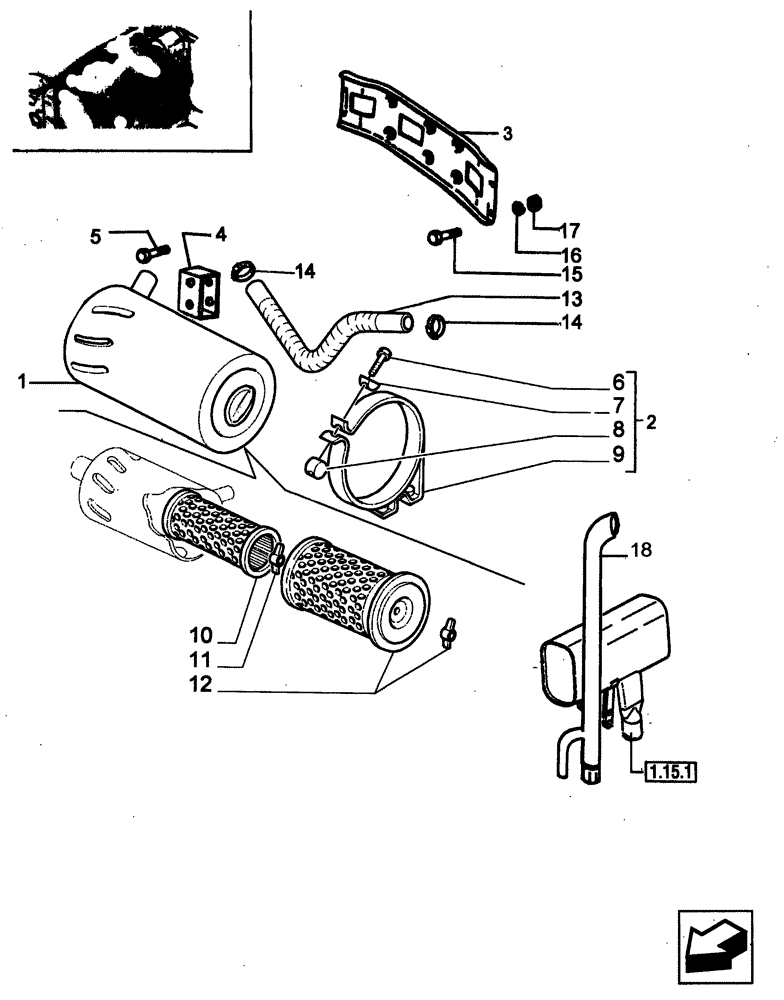

Запчасти Case IH JX80 (1.19.1/01) - (VAR.199) AIR FILTER - BRACKET (02) - ENGINE EQUIPMENT

1

5153784

AIR FILTER

JX60 - JX80

1шт.

1

5165665

AIR CLEANER

JX70 - JX90 - JX95, 203mm OD x 349mm L

1шт.

2

5095024

SUPPORT

, Serial Range: -C4999

1шт.

3

5094521

SUPPORT

JX70 - JX90 - JX95

1шт.

3

5094792

SUPPORT

JX60 - JX80

1шт.

4

5092628

SPACER

1шт.

5

11307021

BOLT,Hex, M10 x 1.25 x 40, 10.9, Full Thd

2шт.

6

5120756

SCREW

M8 x 1.25 x 65, Serial Range: -C4999

1шт.

6

5120756

SCREW

M8 x 1.25 x 65, Start Serial: D4999

1шт.

7

5120754

PIN

, Serial Range: -C4999

1шт.

7

5120754

PIN

, Start Serial: D4999

1шт.

8

5120755

PIN,16mm OD x 15mm L

, Serial Range: -C4999

1шт.

8

5120755

PIN,16mm OD x 15mm L

, Start Serial: D4999

1шт.

9

5095024

SUPPORT

, Serial Range: -C4999

1шт.

9

5168072

BRACKET

, Start Serial: D4999

1шт.

10

1930537

ELEMENT

1шт.

Valid with JX60 Model

1шт.

10

1931169

AIR FILTER

1шт.

Valid with JX70 Model

1шт.

11

79062701

NUT

1шт.

12

87780710

ELEMENT

1шт.

Valid with JX60 Model

1шт.

12

1931168

AIR FILTER

1шт.

Valid with JX60 Model

1шт.

13

5093050

HOSE,32mm ID x 700mm L

JX60 - JX80

1шт.

13

5094824

HOSE,32mm ID x 1400mm L

JX70 - JX90 - JX95

1шт.

14

5085778

CLAMP

D=32 x 51

2шт.

15

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

16

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

17

14197991

NUT,M8 x 1.25, Cage

2шт.

18

5091485

EXHAUST SYSTEM PIPE

1шт.
